Seamless Service in Balancing Machines

At MBS Balance, we are pleased to provide you with reliable support at every step of the way with our machines.

Automatic Balancing Machines

Automatic Balancing Machines

Automatic Balancing Machine H-CNC-10

The H-CNC-10 is a compact automatic balancing machine for light rotors from 0.5 kg to 10 kg and up to Ø 50 mm in diameter, such as small electric motor rotors, fans and precision electronic parts.

View Product
Automatic Balancing Machines

Automatic Balancing Machine CNC-100

The CNC-100 is a fully automatic balancing machine for rotors, shafts and similar parts on series production lines.

View Product

Automatic Balancing Machines

An automatic balancing machine measures the unbalance and corrects it in the same cycle, without the operator having to read values or turn the part. After measuring, an automatic correction unit removes the calculated amount of material at the correction position, and the result is saved for every part.

Automatic machines are used where the same part is balanced in large numbers: electric motor rotors, fans, pulleys, flywheels and brake discs. The cycle time stays the same from the first part to the last.

H-CNC-10 or CNC-100

H-CNC-10 CNC-100
Rotor weight 0.5–10 kg 1–100 kg
Max. rotor diameter 50 mm 400 mm
Correction planes Static / Dynamic Static / Dynamic

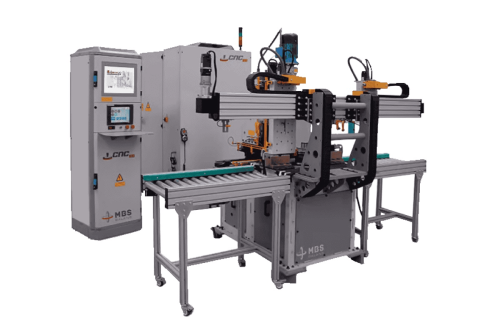

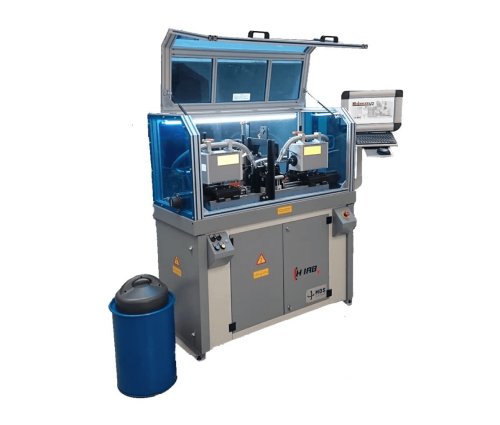

H-CNC-10 automatic balancing machineCNC-100 automatic balancing machine with correction unit

Frequently Asked Questions

When is an automatic machine worth it?

When the same part is balanced in series and the cycle time or the operator's time matters. For single parts and repairs, a manual horizontal or vertical machine is enough.

Are the results recorded?

Yes. The iBalancer software keeps the measurement records of every part and prints or saves a PDF report.
