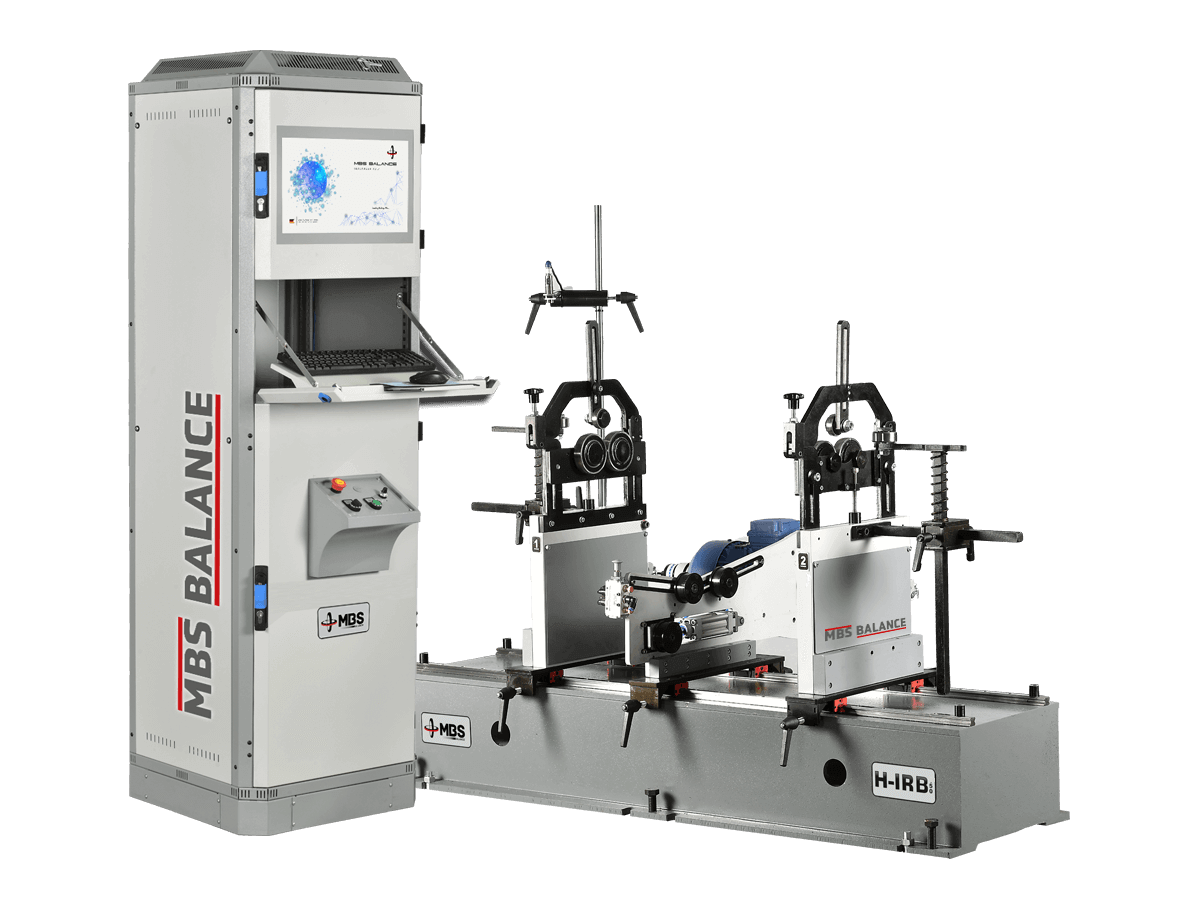

Horizontal Balancing Machine H-IRB-100
Product Description
A Precise Solution for High Performance
The H-IRB 100 Horizontal Balancing Machine offers dynamic and static balancing for rotor weights ranging from 10 kg to 100 kg and rotor diameters up to 1100 mm. The shaft drive unit enables high-precision measurements for large-diameter rotors, while the belt drive unit provides excellent results for medium and small parts. This flexibility makes the device suitable for a wide range of industrial applications.
In compliance with ISO 1940 standards, advanced software is used for balancing calculations, and operations can be performed on different rotor types without the need for recalibration. Its user-friendly, Windows-based software ensures efficient and accurate results. The CE-certified H-IRB 100 is delivered with installation and training support. Additionally, it can be adapted to the characteristics of different workpieces with optional additions like a drilling unit.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 100 kg |
| Minimum Rotor Weight | 7 kg |
| Maximum Rotor Diameter | 500 mm |
| Minimum Shaft Diameter | 9 mm |
| Maximum Shaft Diameter | 130 mm |
| Motor Power | 1.5 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 1500 mm |
Application Areas
- Rotors
- Turbines and fans
- Propellers
- Industrial drums and shafts
- Medium and large-scale rotors
Why the H-IRB 100?
Discover the standout features of the H-IRB 100:
- High-precision measurements for different rotor sizes
- Balancing calculations in compliance with the ISO 1940 standard
- Adaptable options for specific workpieces
- Advanced, user-friendly Windows-based software
