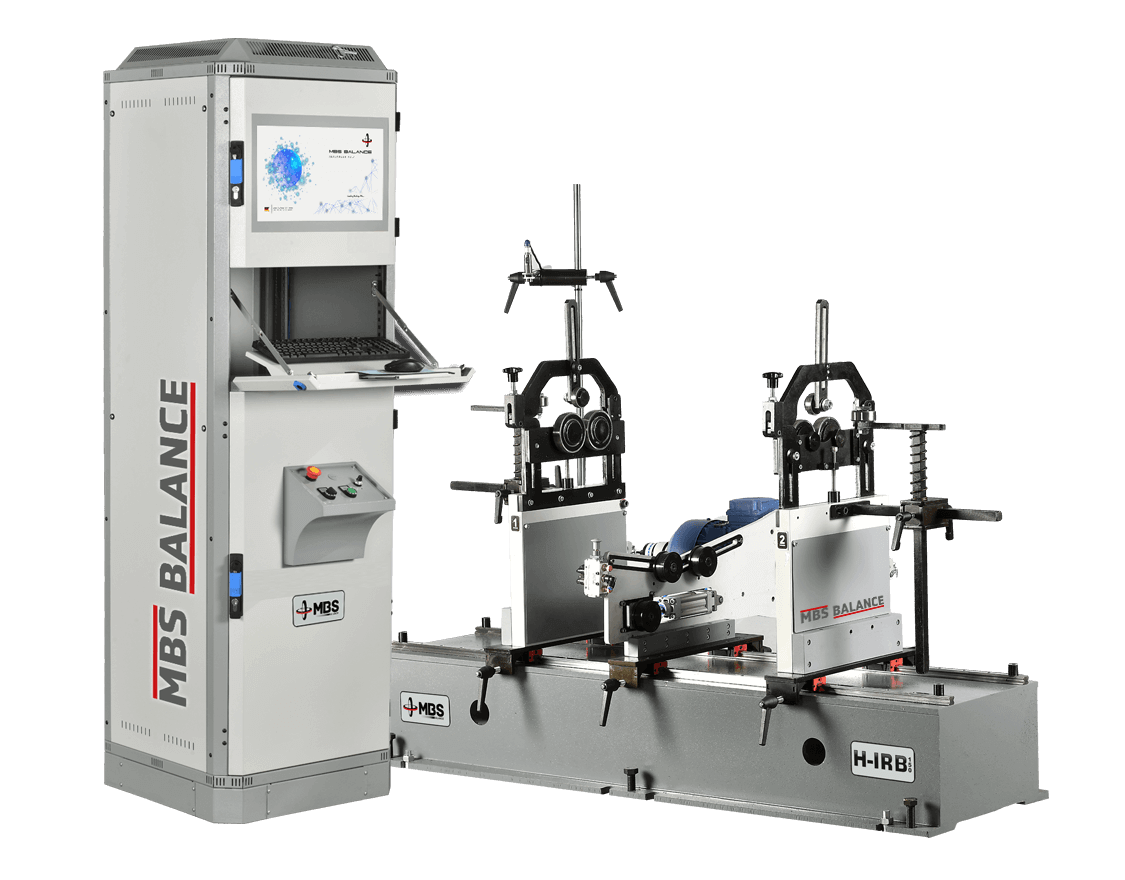

Horizontal Balancing Machine H-IRB 150
Product Description
Precise Solution for Medium-Sized Parts

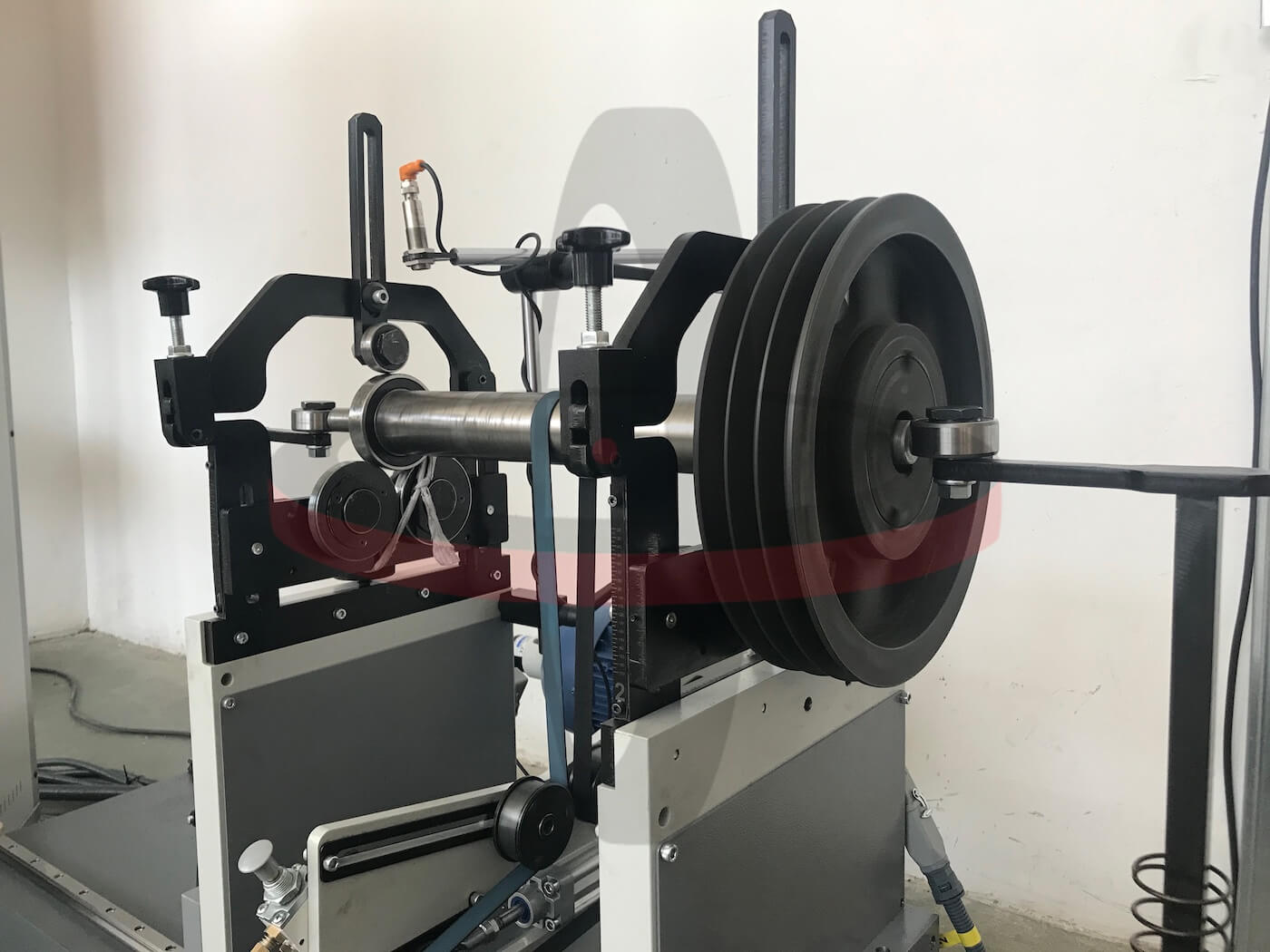

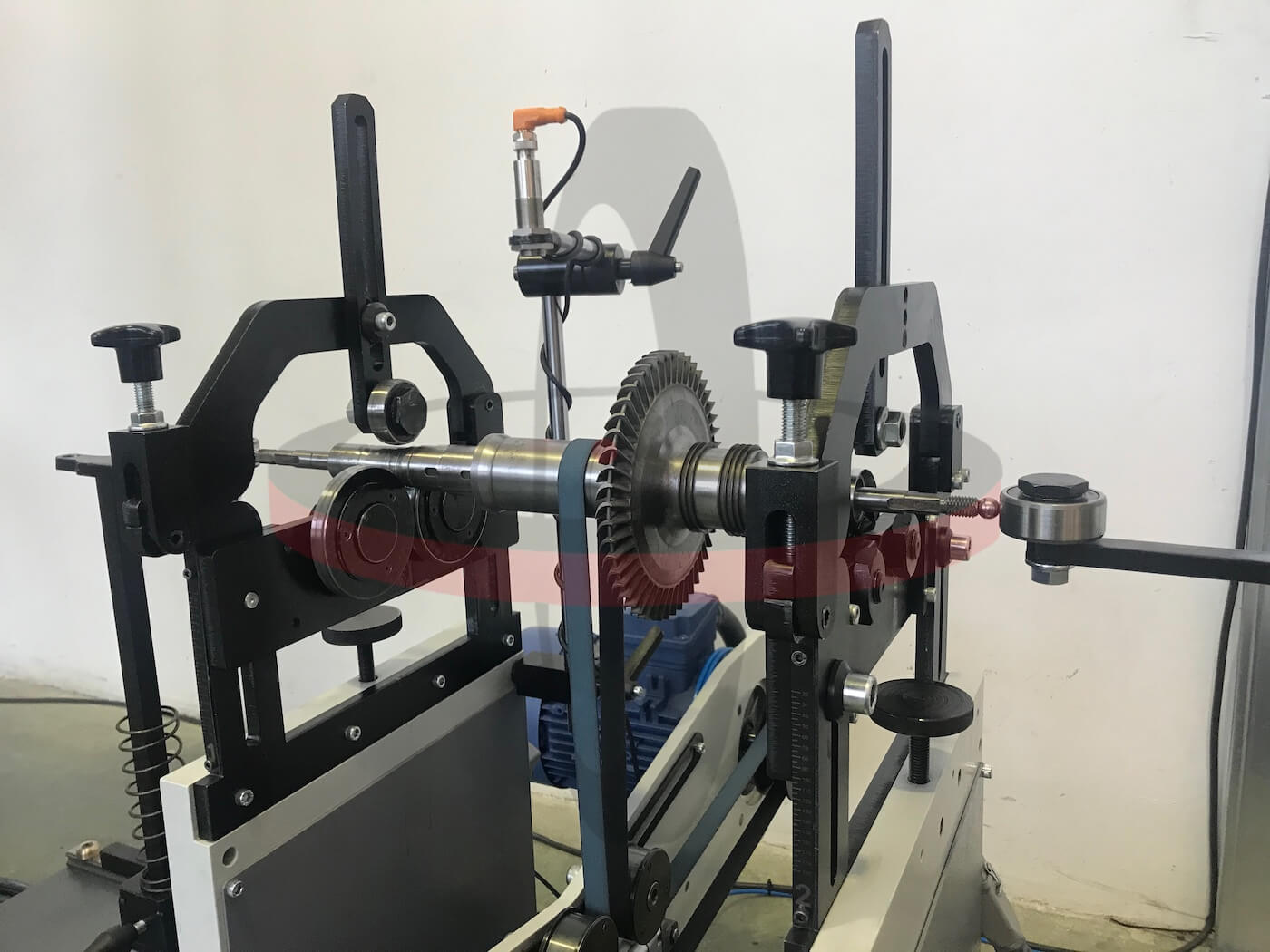

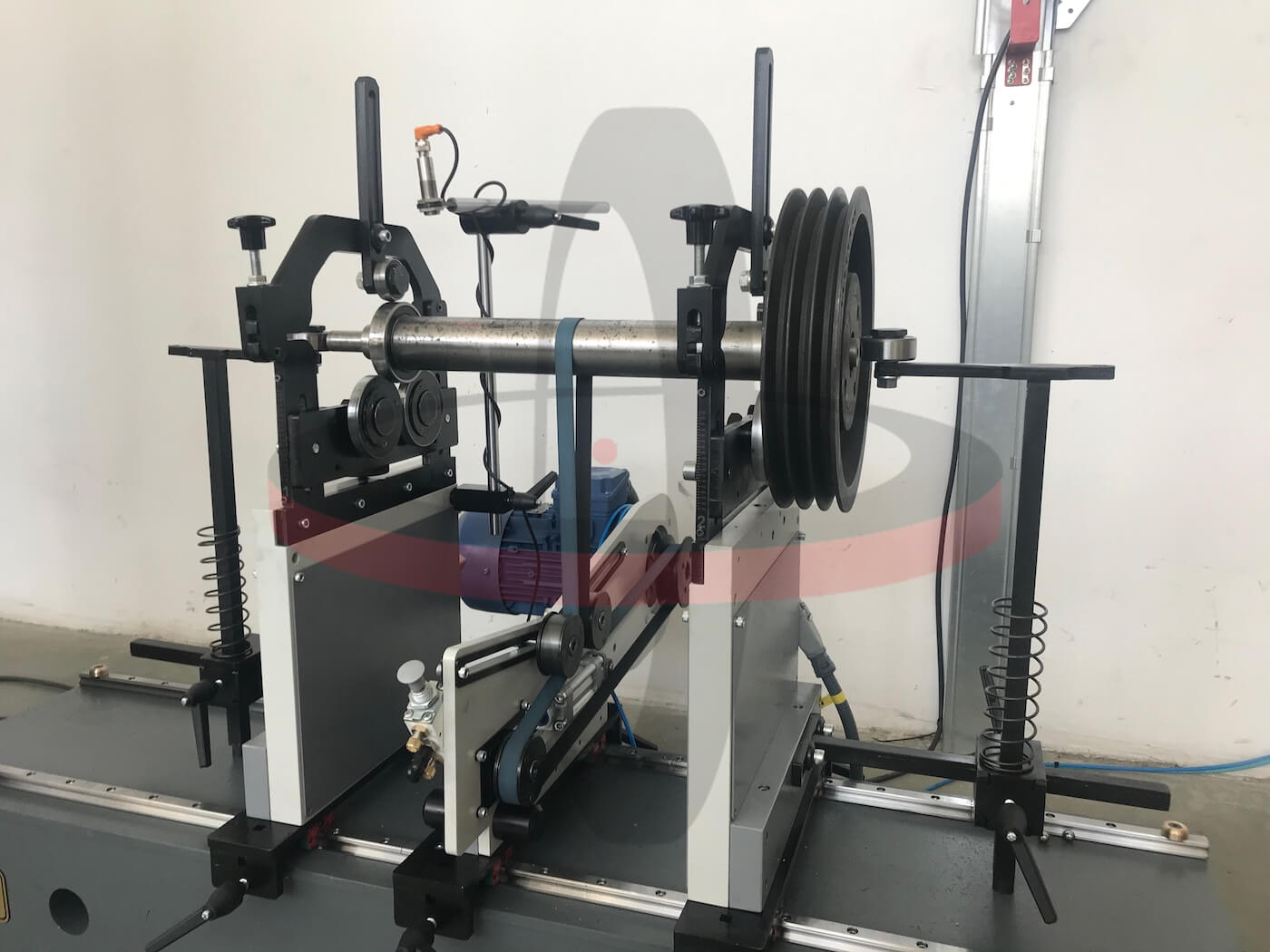

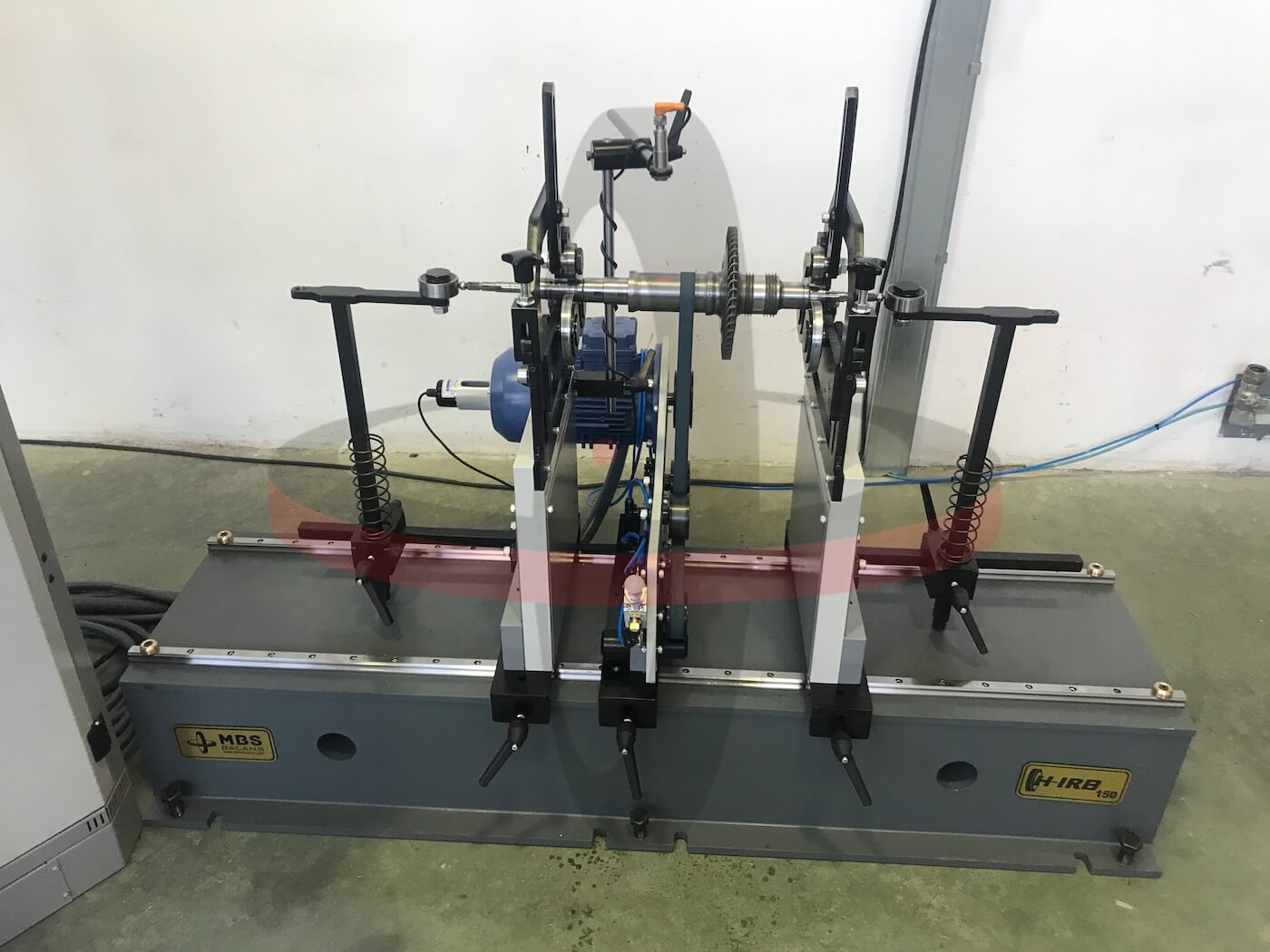

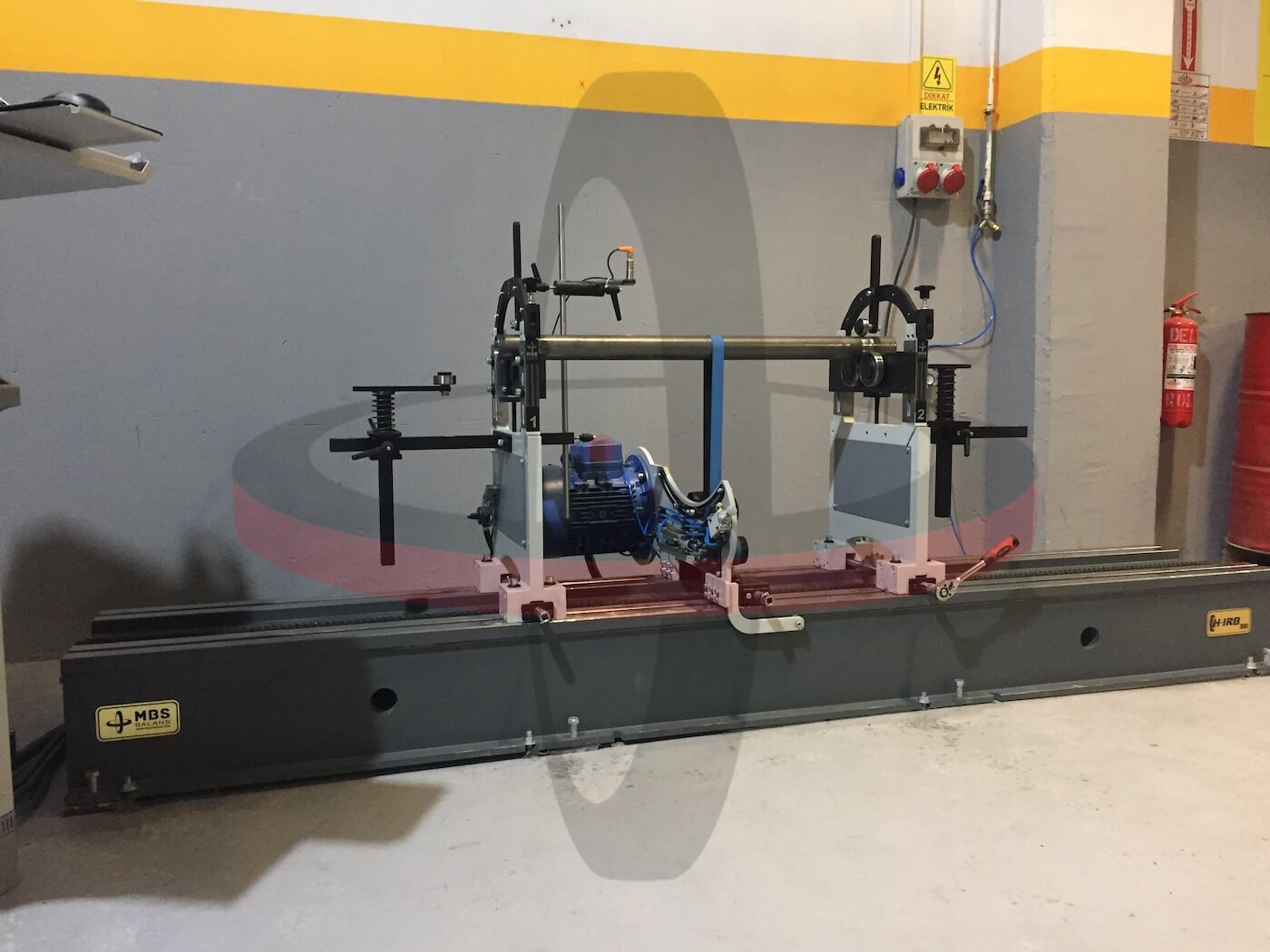

The H-IRB 150 Horizontal Balancing Machine is a device for industrial applications that provides static and dynamic balancing for parts with rotor weights ranging from 15 kg to 150 kg and a maximum diameter of 500 mm. This machine offers precise and easy operation with its belt drive unit, speeding up mass production processes. The belt drive unit provides the best performance in cases where the part has a cylindrical section for the belt to sit on.
Equipped with advanced balancing software capable of calculating tolerances in compliance with ISO 1940 standards, the H-IRB 150 is supported by a user-friendly interface. It allows working with different rotor types without requiring recalibration. This CE-certified machine is delivered with our company's training and installation services. It also offers a wider range of uses with special additions like a drilling unit.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 150 kg |
| Minimum Rotor Weight | 10 kg |
| Maximum Rotor Diameter | 600 mm |
| Minimum Shaft Diameter | 5 mm |
| Maximum Shaft Diameter | 130 mm |
| Motor Power | 2.2 kW |
| Drive Unit | Standard Belt |
| Bed Length | 1500 mm |
Application Areas
- Fans and propellers
- Rotors
- Industrial parts such as shafts and drums
- Medium-weight workpieces requiring precision balancing
Why the H-IRB 150?
Discover the standout features of the H-IRB 150:
- Precise balancing for medium-weight rotors
- Tolerance calculations in compliance with the ISO 1940 standard
- User-friendly interface and advanced software
- High performance with the belt drive unit
