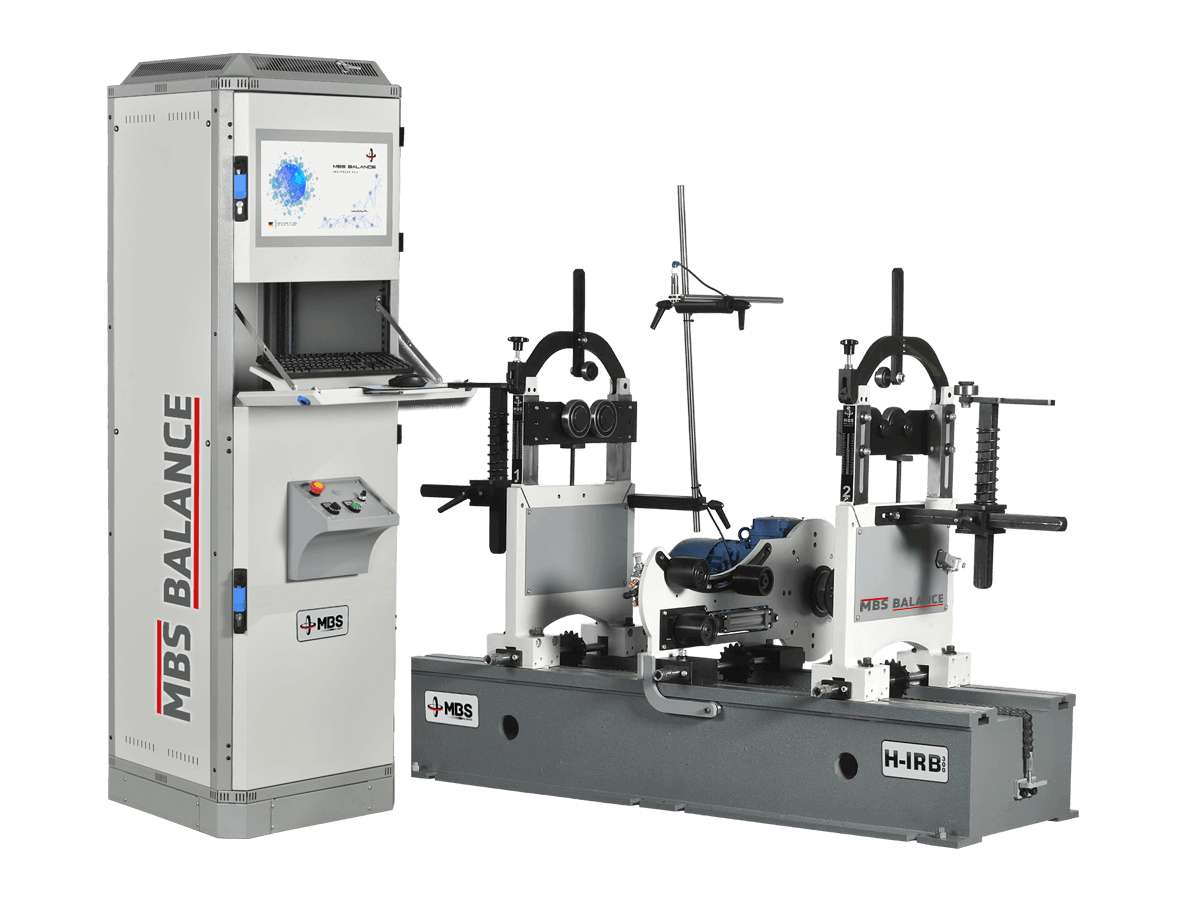

Horizontal Balancing Machine H-IRB 300
Product Description
Reliable Balancing for Medium and Large Parts

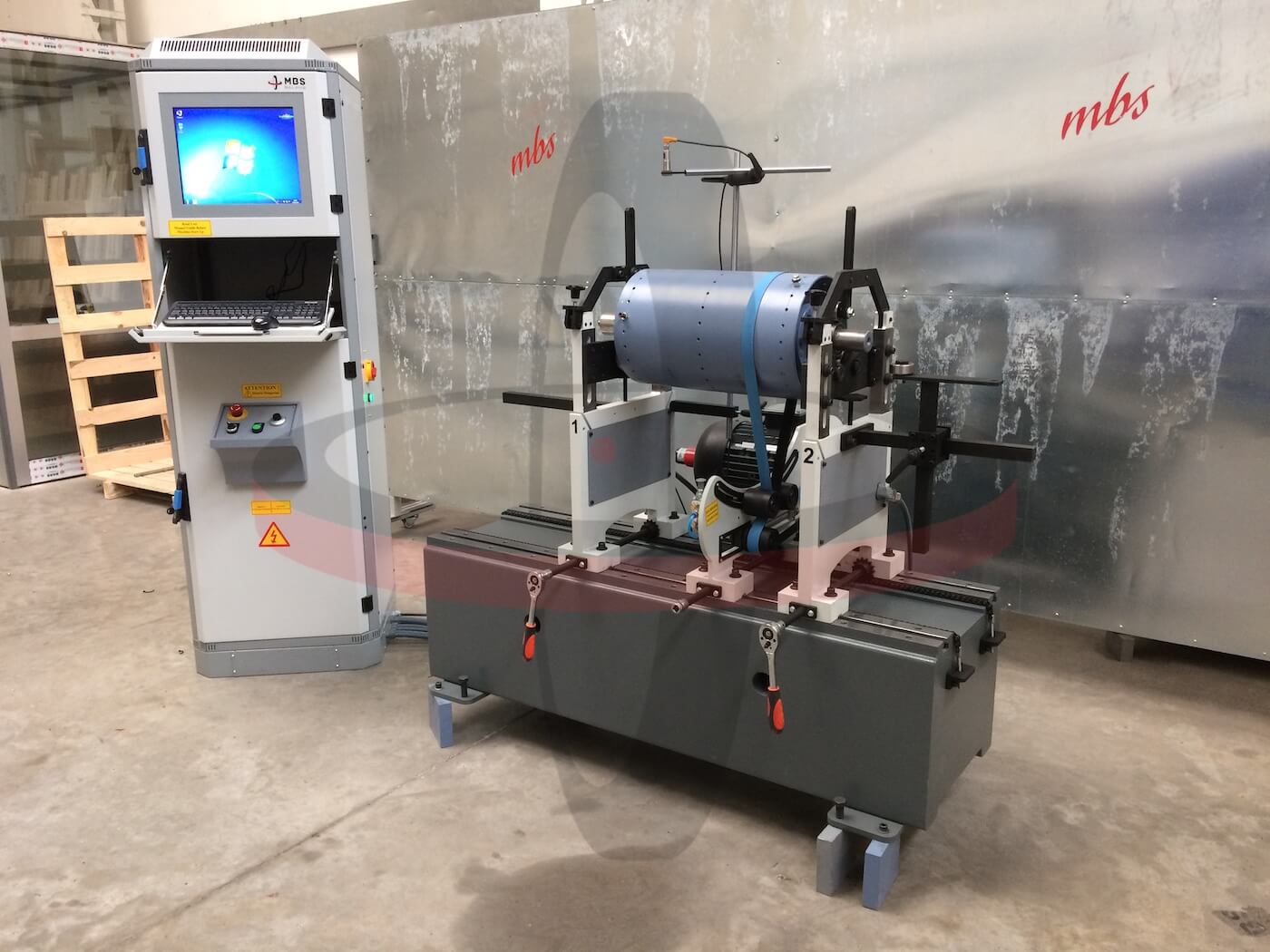

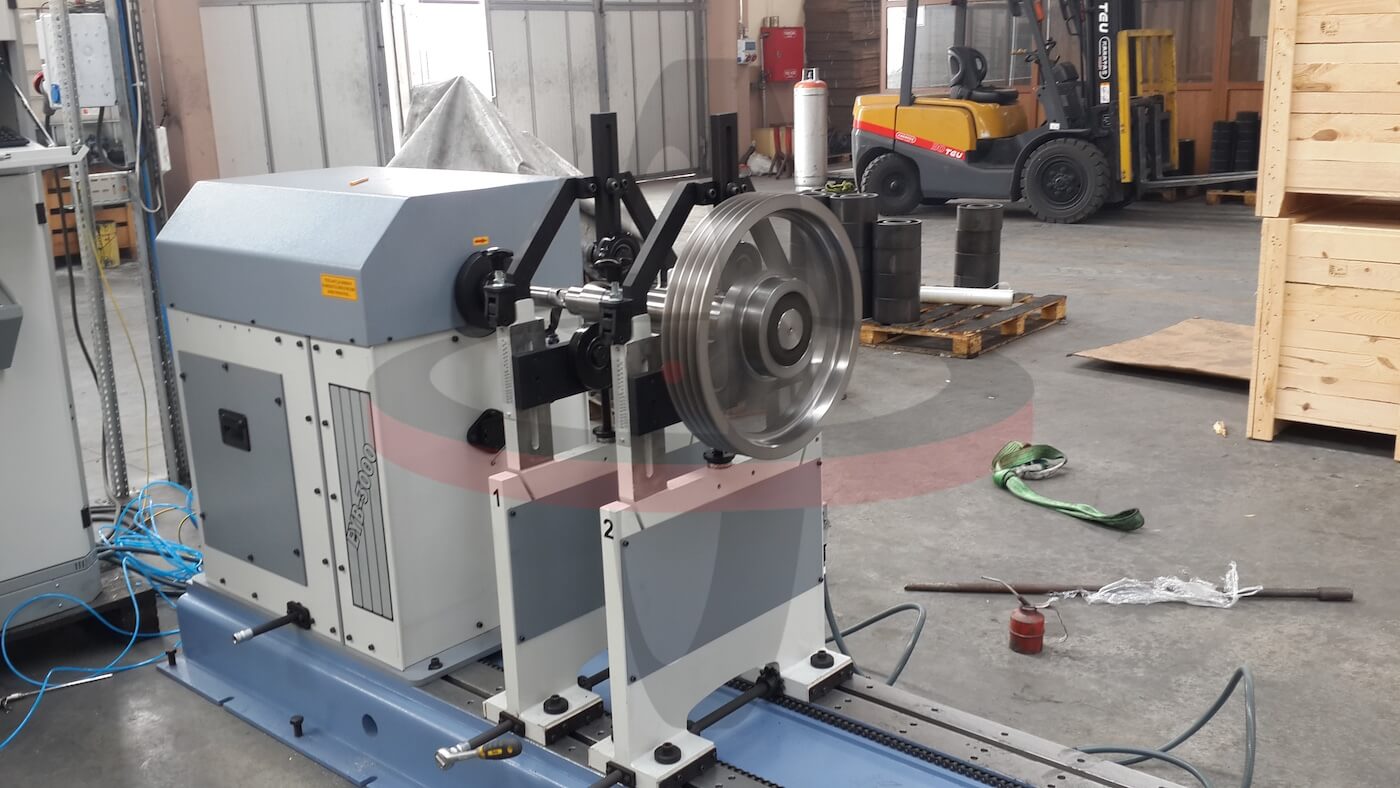

The H-IRB 300 Horizontal Balancing Machine is a device that meets the dynamic and static balancing needs of medium and large-scale rotors. This model, which supports rotor weights ranging from 15 kg to 300 kg, provides precise results for rotor diameters up to 800 mm. The standard belt drive unit offers fast and easy operation for small and medium parts, while the optional shaft drive unit provides a reliable solution for heavy and large-diameter rotors. This flexible structure makes the machine suitable for use in various industrial applications.
Its advanced software easily performs tolerance calculations in accordance with the ISO 1940 standard and allows working on various rotor types without requiring recalibration. The CE-certified H-IRB 300 is delivered with installation and training support. With its durable structure, wide range of drive options, and user-friendly interface, it provides an efficient and reliable balancing experience.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 300 kg |
| Minimum Rotor Weight | 15 kg |
| Maximum Rotor Diameter | 800 mm |
| Minimum Shaft Diameter | 10 mm |
| Maximum Shaft Diameter | 130 mm |
| Motor Power | 4 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 1500 mm |
Application Areas
- Rotors

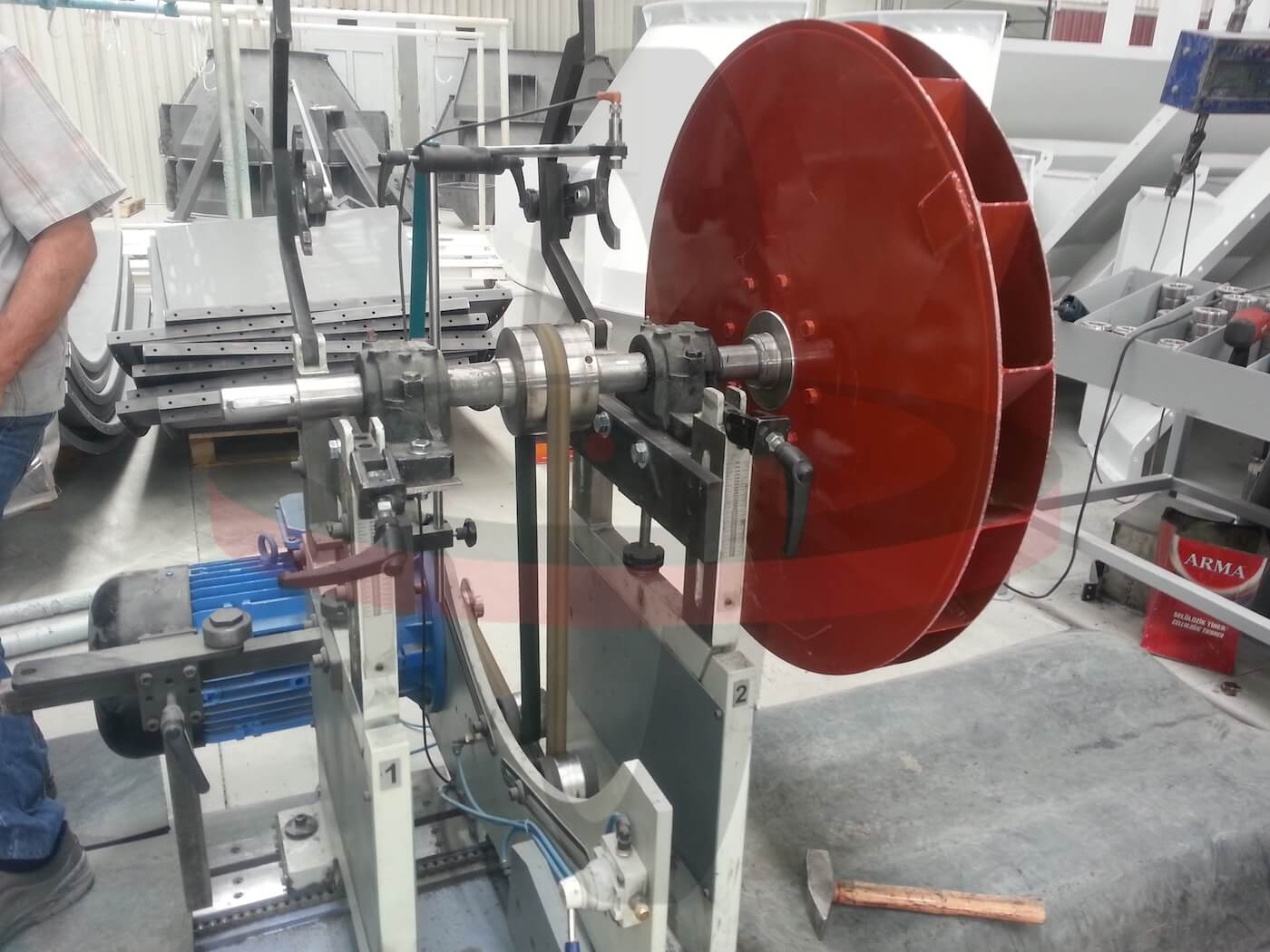

- Fans and propellers

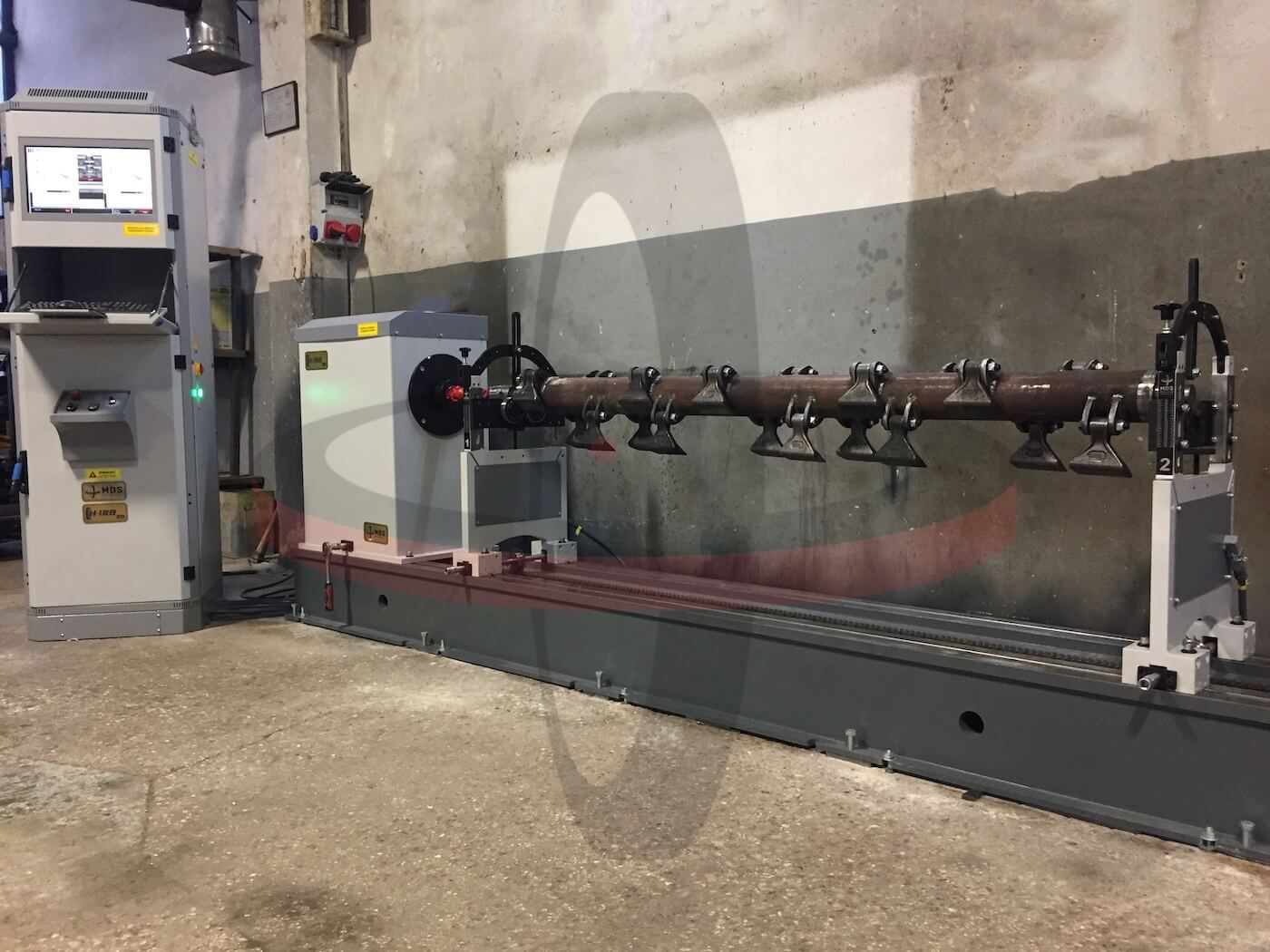

- Industrial parts such as drums and shafts
- Large-diameter and heavy rotor types
Why the H-IRB 300?
Discover the standout features of the H-IRB 300:
- Precise balancing for medium and large parts
- Tolerance calculations in compliance with the ISO 1940 standard
- User-friendly interface and advanced software
- Flexible drive options
