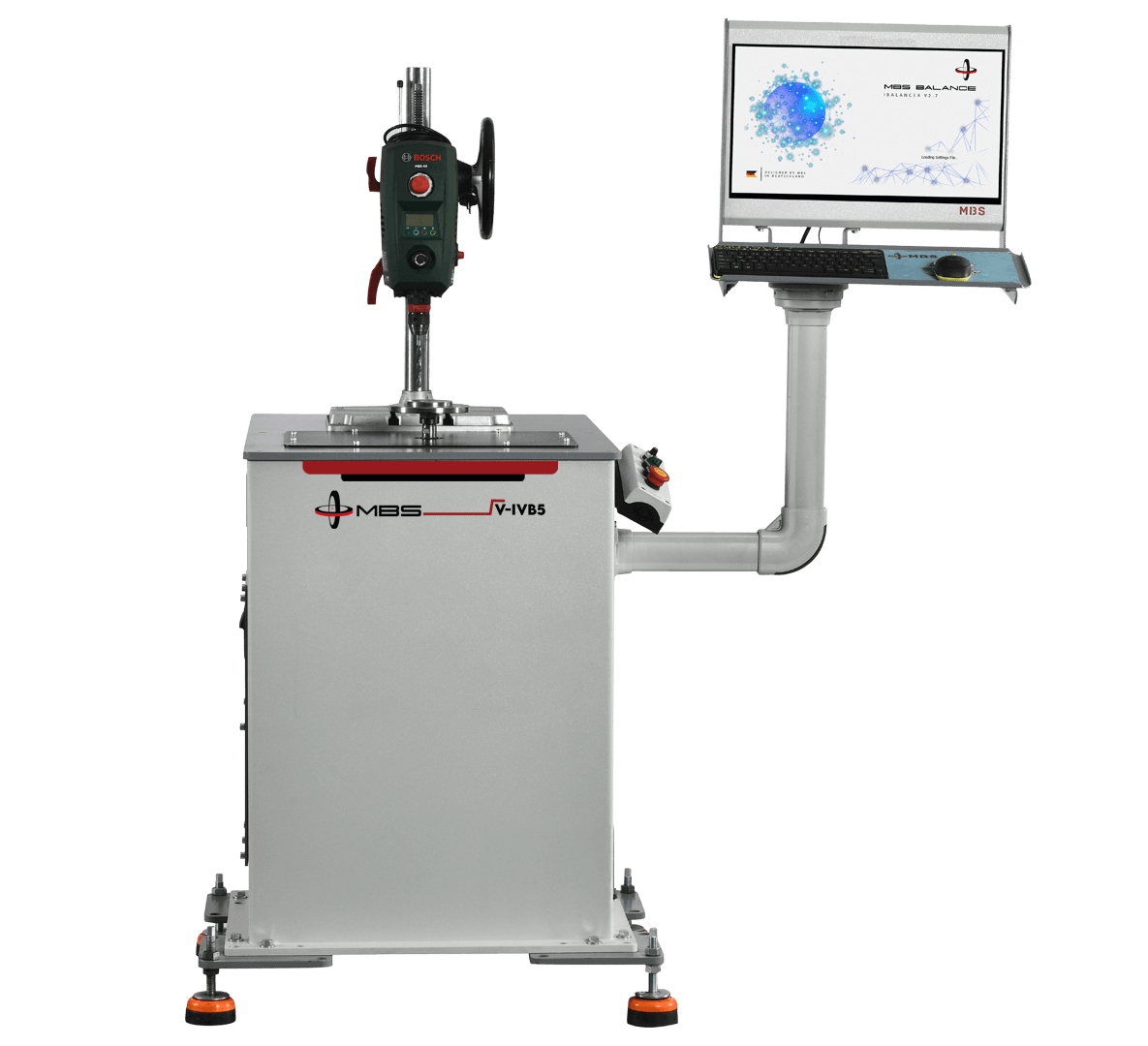

Vertical Balancing Machine V-IVB 5
Product Description
Compact Balancing Solution for Small Parts
The V-IVB 5 Vertical Balancing Machine is a compact device designed to provide balancing for small and lightweight rotors that require precision. It offers an ideal solution for parts with a maximum weight of 5 kg and a diameter up to 500 mm. Its manual loading feature makes it easy to practically place workpieces. It provides high precision for a wide variety of parts such as brake discs, flywheels, pulleys, gears, and clutch pressure plates.
The machine is equipped with advanced software capable of calculating tolerances in compliance with the ISO 1940 standard. Its Windows-based operating system and an Intel-processor measurement unit offer a user-friendly experience. The CE-certified V-IVB 5 is delivered with training and installation services. Optional additions such as drilling or milling units can be made for extra needs.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 5 kg |
| Minimum Rotor Weight | 0.05 kg |
| Maximum Rotor Diameter | 500 mm |
| Minimum Rotor Diameter | 20 mm |
| Motor Power | 400 W |
| Balancing Speed | 150 - 5000 RPM |
| Unbalance Reduction Rate | 98% |
| Position Finding Time | 8-24 seconds |
| Measurement Unit | iBalancer |
Application Areas
- Brake discs
- Flywheels
- Pulleys
- Gears
- Clutch pressure plates
- Small and lightweight industrial parts
Why the V-IVB 5?
Discover the standout features of the V-IVB 5:
- Precise balancing for small and lightweight parts
- Tolerance calculations in compliance with the ISO 1940 standard
- User-friendly Windows-based software
- Compact and durable design
