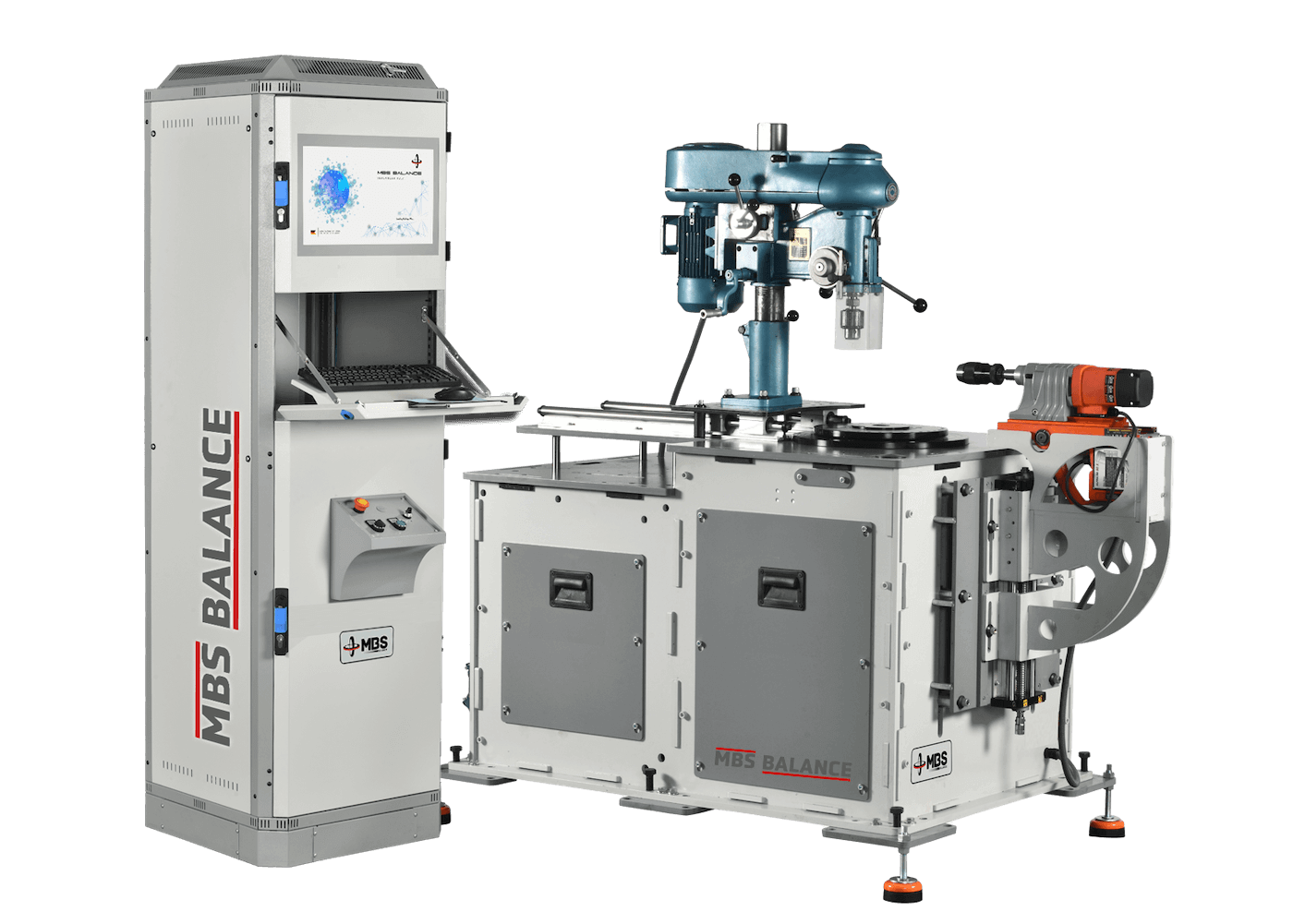

Vertical Balancing Machine V-IVB 50
Product Description
Compact and Precise Vertical Balancing Solution
The V-IVB 50 Vertical Balancing Machine is a device designed for rotor weights ranging from 5 kg to 50 kg and parts with a maximum diameter of 800 mm. Standing out with its compact structure and ease of use, this machine offers an ideal balancing solution for small and medium-sized rotors. The V-IVB 50 operates with high precision for both static and dynamic balancing and has a wide range of applications.
It is equipped with advanced software capable of calculating tolerances in compliance with ISO standards. Its user-friendly, Windows-based interface provides ease for operators while allowing for precise measurements on different rotor types without requiring recalibration. The V-IVB 50, which has CE certification, is delivered with installation and training services.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 50 kg |
| Minimum Rotor Weight | 5 kg |
| Maximum Rotor Diameter | 800 mm |
| Minimum Rotor Diameter | 100 mm |
| Motor Power | 5.5 kW |
Application Areas
- Rotors
- Propellers
- Turbine parts
- Industrial drums and fans
- Small and medium-sized rotors
Why the V-IVB 50?
Discover the standout features of the V-IVB 50:
- Precise balancing for small and medium-sized rotors
- Tolerance calculations in compliance with ISO standards
- User-friendly Windows-based software
- Compact and durable design
Product Gallery
