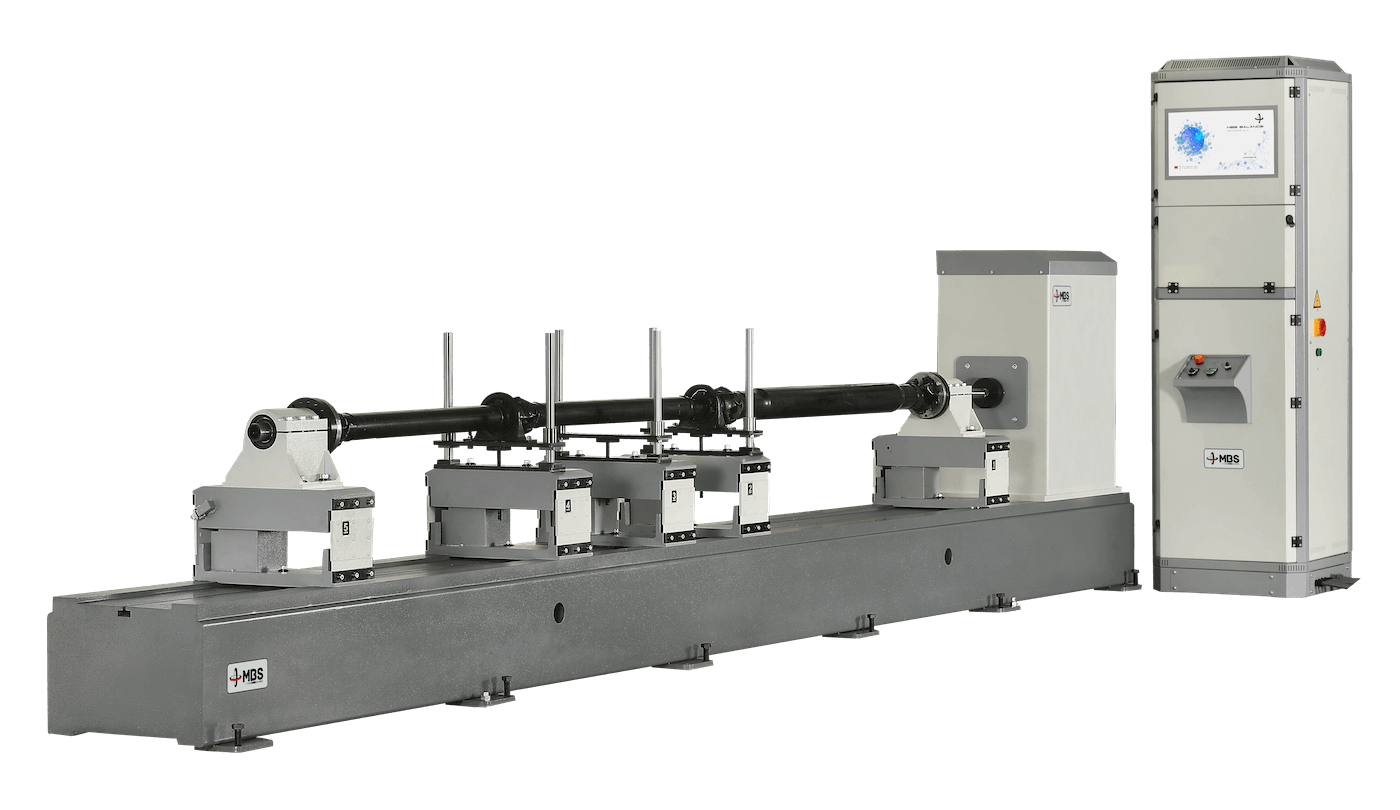

Cardan Shaft Balancing Machine H-IHB 300
Product Description
Powerful Balancing Solution for Heavy Loads
The H-IHB-300 Balancing Machine is a high-performance device designed for the precise balancing of heavy and large workpieces. It can safely balance rotors ranging from 20 kg to 300 kg and workpieces with a diameter up to 600 mm. With a 4 kW motor, the machine provides a reliable solution for demanding industrial applications through its powerful performance.
Equipped with a standard shaft drive system, the H-IHB-300 allows operators to easily perform precise balancing operations. Its long bearing length (5500 mm) facilitates the balancing of large rotors and cardan shafts. The design, compliant with ISO standards, ensures high efficiency and precision in industrial production processes.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 300 kg |
| Minimum Rotor Weight | 20 kg |
| Maximum Rotor Diameter | 600 mm |
| Minimum Shaft Diameter | 9 mm |
| Maximum Shaft Diameter | 140 mm |
| Motor Power | 4 kW |
| Drive Unit | Standard Shaft |
| Bed Length | 5900 mm |
Application Areas
- Balancing of cardan shafts and large rotors
- Precision balancing for heavy industrial applications
- Fans, drums, and other large workpieces
- Industrial balancing processes in compliance with ISO standards
Why the H-IHB-300?
Discover the standout features of the H-IHB-300.
- Precise balancing in compliance with ISO standards
- Operator-independent use
- High accuracy and performance for heavy loads
- Compact and durable design
