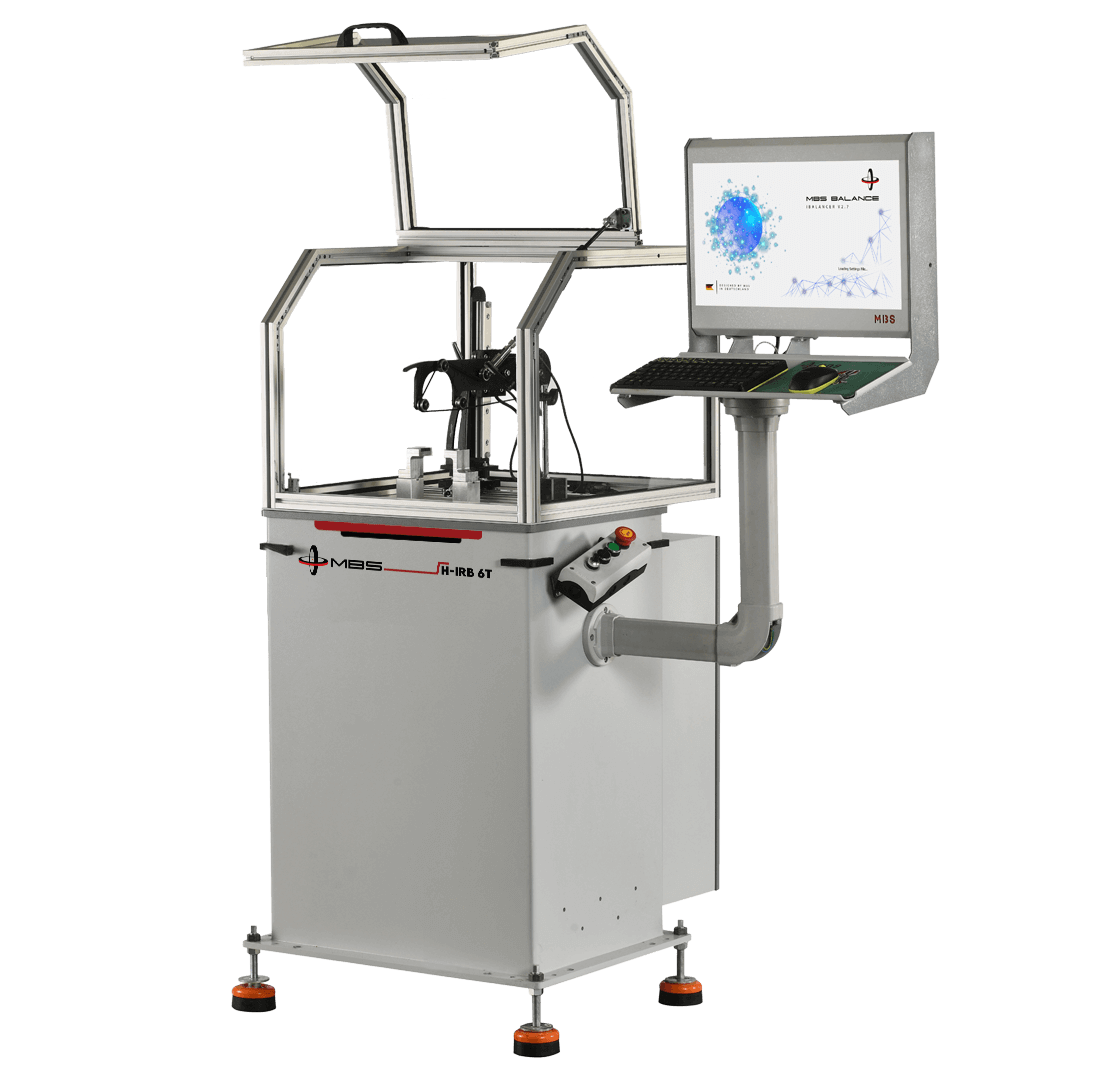

Shaft Balancing Machine - H-IRB 6T
Product Description
High-Precision Balancing for Micro Parts
The H-IRB 6T Shaft Balancing Machine is specially designed for turbo shafts and small rotors weighing between 0.1 kg and 6 kg. Thanks to its compact structure, this device takes up minimal space and is a perfect solution for industrial jobs requiring precision and speed. With its capacity for stable and accurate measurements at high speeds, it shortens the balancing time, increasing production efficiency.
The H-IRB 6T, which has a Class C protection cabinet in compliance with ISO 21940 standards, is supported by advanced balancing software. Its user-friendly, Windows-based software facilitates operations without requiring recalibration for different rotor types. This CE-certified machine is delivered with training and installation services and offers long-term reliability.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 6 kg |
| Minimum Rotor Weight | 0.1 kg |
| Maximum Rotor Diameter | 300 mm |
| Minimum Shaft Diameter | 4 mm |
| Maximum Shaft Diameter | 25 mm |
| Motor Power | 0.4 kW |
| Drive Unit | Belt (Standard) |
| Body Length | 400 mm |
Application Areas
- Micro and lightweight turbo shafts
- Small-diameter rotors
- Propellers and small fans
- Low-weight industrial parts
Why the H-IRB 6T?
Discover the standout features of the H-IRB 6T:
- High-precision balancing for micro parts
- Software support in compliance with the ISO 21940 standard
- User-friendly Windows-based interface
- Compact and durable design
