Optional Balancing Machine H-300+
Product Description
Reliable Balancing Solutions for Medium-Sized Rotors

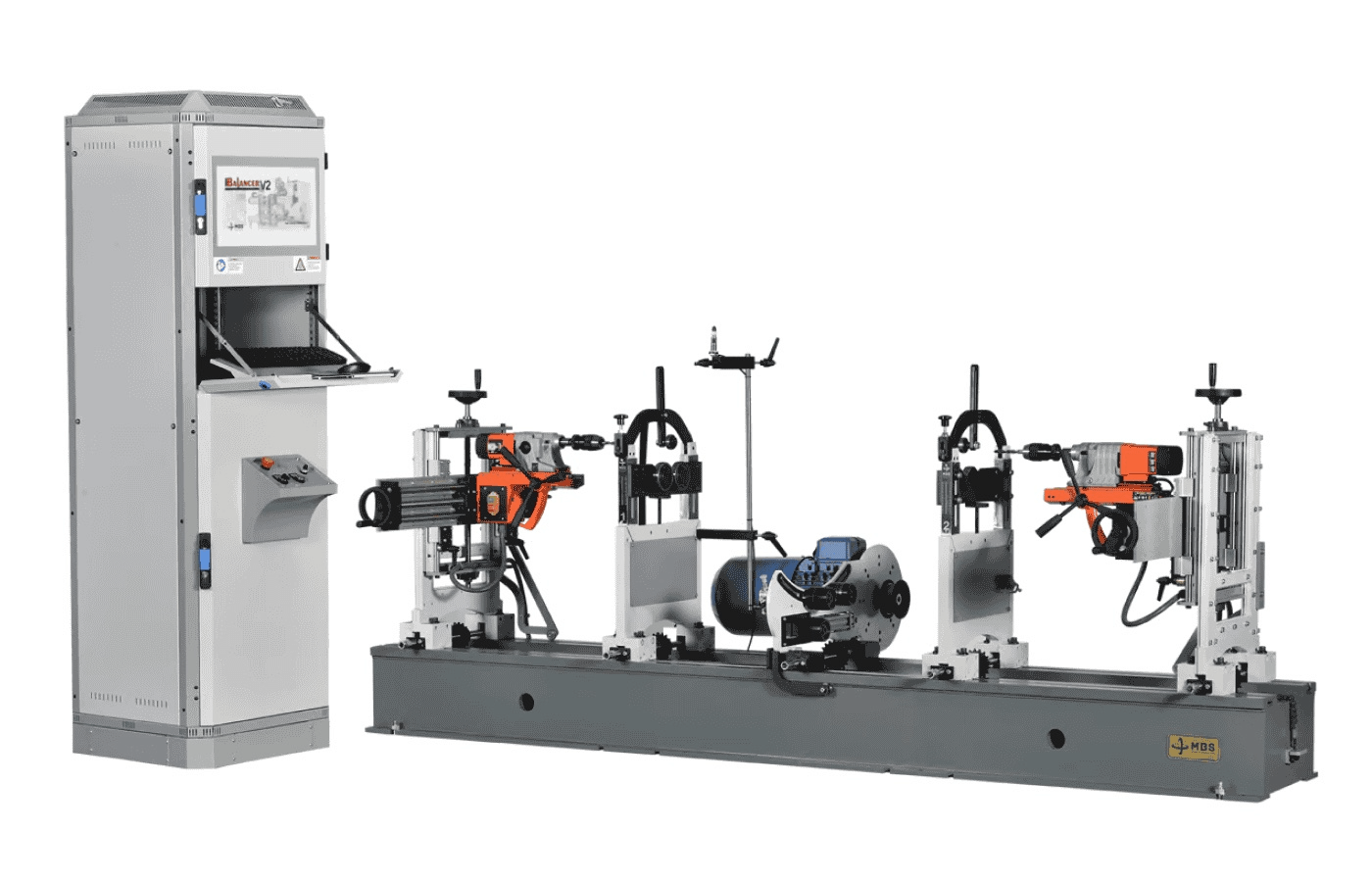

The H-300+ Horizontal Balancing Machine is specially designed for the precise balancing of medium-sized rotors. Supporting rotors from 10 kg to 300 kg, this machine offers a wide range of uses with a rotor diameter of up to 800 mm. Thanks to its powerful 5.5 kW motor, it provides efficient operational performance even under heavy loads.
The standard belt drive system and 3000 mm bed length ensure reliability and stability when working with large-sized rotors. With its advanced software that facilitates tolerance calculations in compliance with ISO 1940 standards, the H-300+ offers maximum precision and productivity in industrial applications.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 300 kg |
| Minimum Rotor Weight | 10 kg |
| Maximum Rotor Diameter | 800 mm |
| Minimum Shaft Diameter | 9 mm |
| Maximum Shaft Diameter | 130 mm |
| Motor Power | 5.5 kW |
| Drive System | Standard Belt |
| Bed Length | 3000 mm |
Application Areas
- Industrial drums and shafts
- Propellers, fans, and other rotor types
- Precise balancing for medium-sized parts
