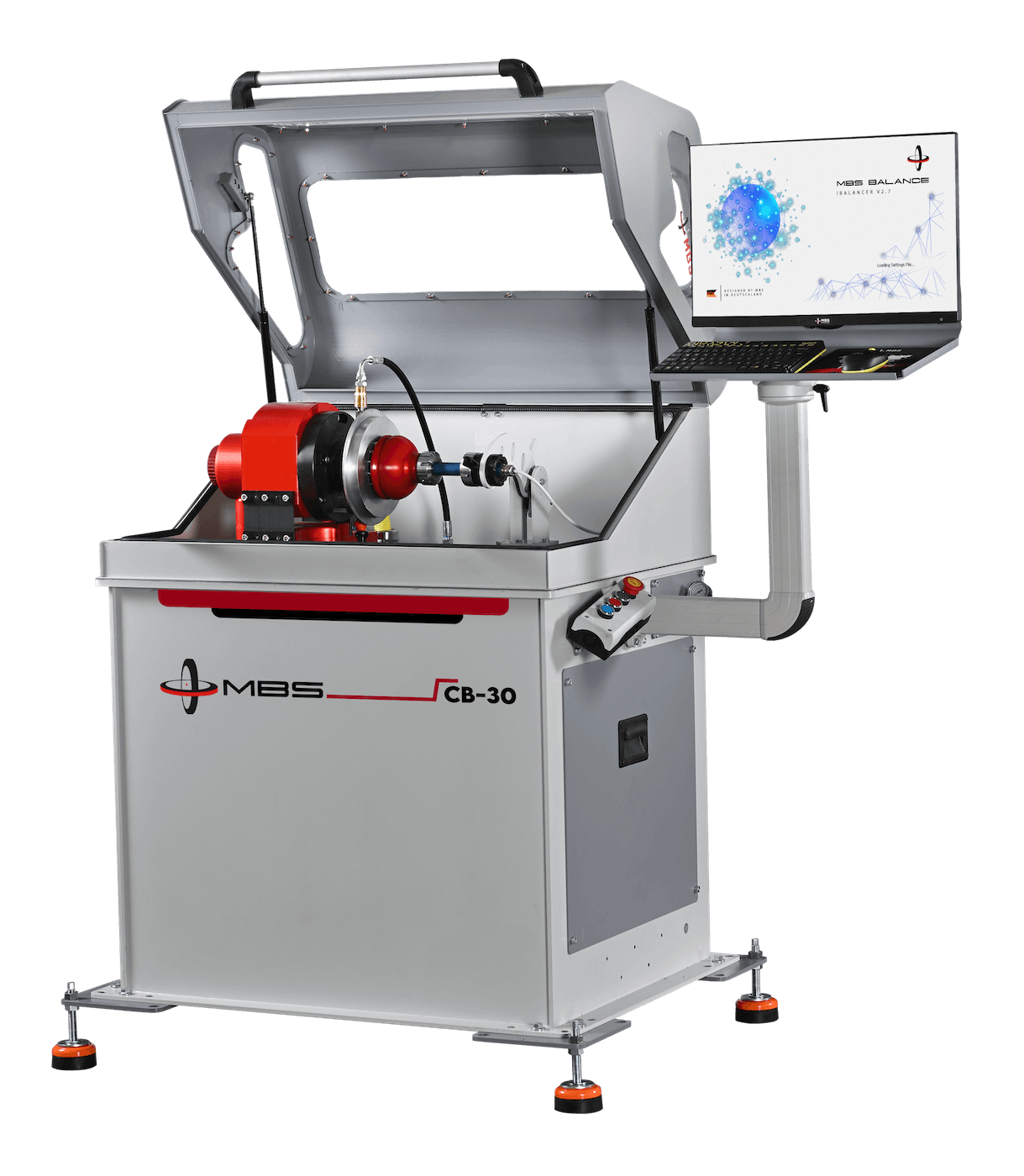

Turbo Balancing Machine CB-30
Product Description
Fast and Precise Turbo Balancing Solution
The Turbo Balancer offers precise and reliable balancing solutions for turbochargers operating between 30,000 rpm and 300,000 rpm. With its advanced technology, it provides high accuracy and efficiency, making it an ideal choice for industrial turbo balancing applications. It accelerates your production processes by measuring unbalance in just 1.5 seconds at 220,000 rpm with an 8 bar compressor.
Technical Specifications
Wide Balancing Measurement Range: Provides precise measurements from 30,000 rpm to 300,000 rpm.
Fast and Accurate Measurement: Measures unbalance in 1.5 seconds at 220,000 rpm.
User Approval: Verified by more than 200 users as being more precise than foreign competitors.
Spare Parts and Service Support: Offers 24-month warranty and on-site service with spare parts support.
Multi-Language Software Interface: User-friendly balancing program with multi-language support.
Advanced Software Technology: Equipped with advanced software for high-precision measurements.
Balancing Process
After connecting the turbo to the machine with the appropriate nozzle and flange adapters, the relevant turbo information is selected from the program database, and the balancing process begins. Based on the detected unbalance value, the turbo nut is ground to achieve reliable and precise results.
Standard Accessories
| Accessory | Description |
|---|---|
| 15 x Nozzle | Connection for various turbocharger models |
| 28 x Flange | Secure mounting for precise balancing |
| 3 x Oil Inlet Fitting | Ensures proper lubrication during balancing |
| 2 x Long Turbo Connecting Element | For long turbo configurations |
| 2 x Short Turbo Connecting Element | For compact turbo configurations |
| Installation and User Manual | Detailed installation and user guide |
Optional Products
- Large nozzle set for heavy vehicle turbos
- Tool Cart
- Printer
- Dremel
Why the Turbo Balancer?
Discover the standout features of the Turbo Balancer:
- Accurate measurements in compliance with ISO standards
- Fast and user-friendly balancing processes
- Increased production efficiency with a 1.5-second measurement time
- High-performance and durable design
