Horizontal Balancing Machine H-IHB-3
Product Description
Powerful and Precise Balancing Solution with a 3 Ton Capacity
The H-IHB 3 Horizontal Balancing Machine is a high-performance device designed for rotor weights ranging from 30 kg to 3000 kg and rotor diameters up to 1400 mm. Providing superior precision for both dynamic and static balancing operations, this machine offers high accuracy on medium and large rotors. The standard belt drive unit is ideal for medium-sized parts, while the optional shaft drive unit provides excellent performance for heavy and large rotors.
Thanks to its advanced software capable of performing tolerance calculations in compliance with ISO 21940 standards, it provides a user-friendly experience. The CE-certified H-IHB 3 is equipped with a Windows-based operating system and allows efficient operation on different rotor types without requiring recalibration. This machine, delivered with training and installation services, offers a long-lasting use with its durable structure.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 3000 kg |
| Minimum Rotor Weight | 30 kg |
| Maximum Rotor Diameter | 1600 mm |
| Minimum Shaft Diameter | 20 mm |
| Maximum Shaft Diameter | 240 mm |
| Motor Power | 11 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 3000 mm |
Application Areas
- Heavy industrial rotors
- Generator rotors
- Compressors
- Electric motors
- Turbine rotors
- Large fans and propellers
- Heavy-load industrial parts
Why the H-IHB 3?
Discover the standout features of the H-IHB 3:
- Precise balancing for heavy and large rotors
- Tolerance calculations in compliance with ISO 21940 standards
- User-friendly interface and advanced software
- Durable structure and high performance

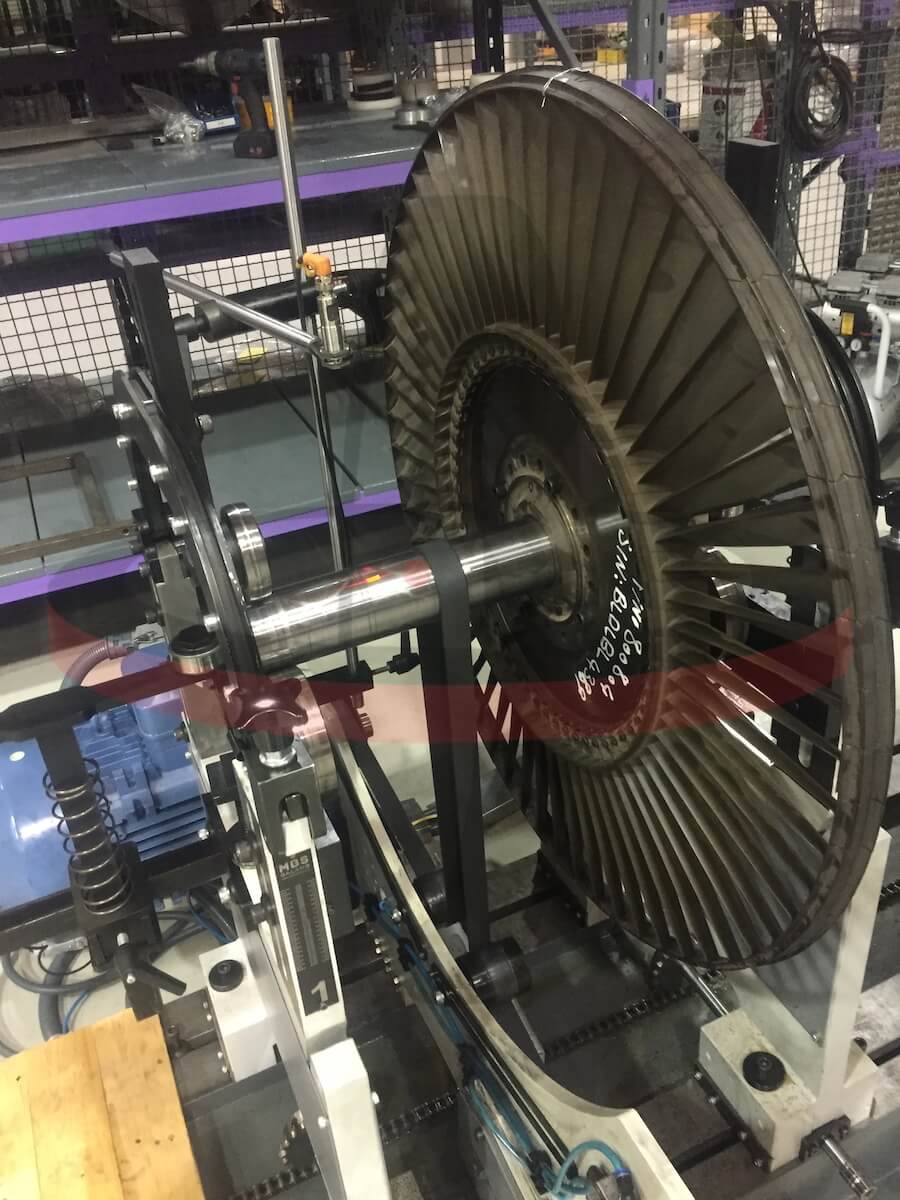

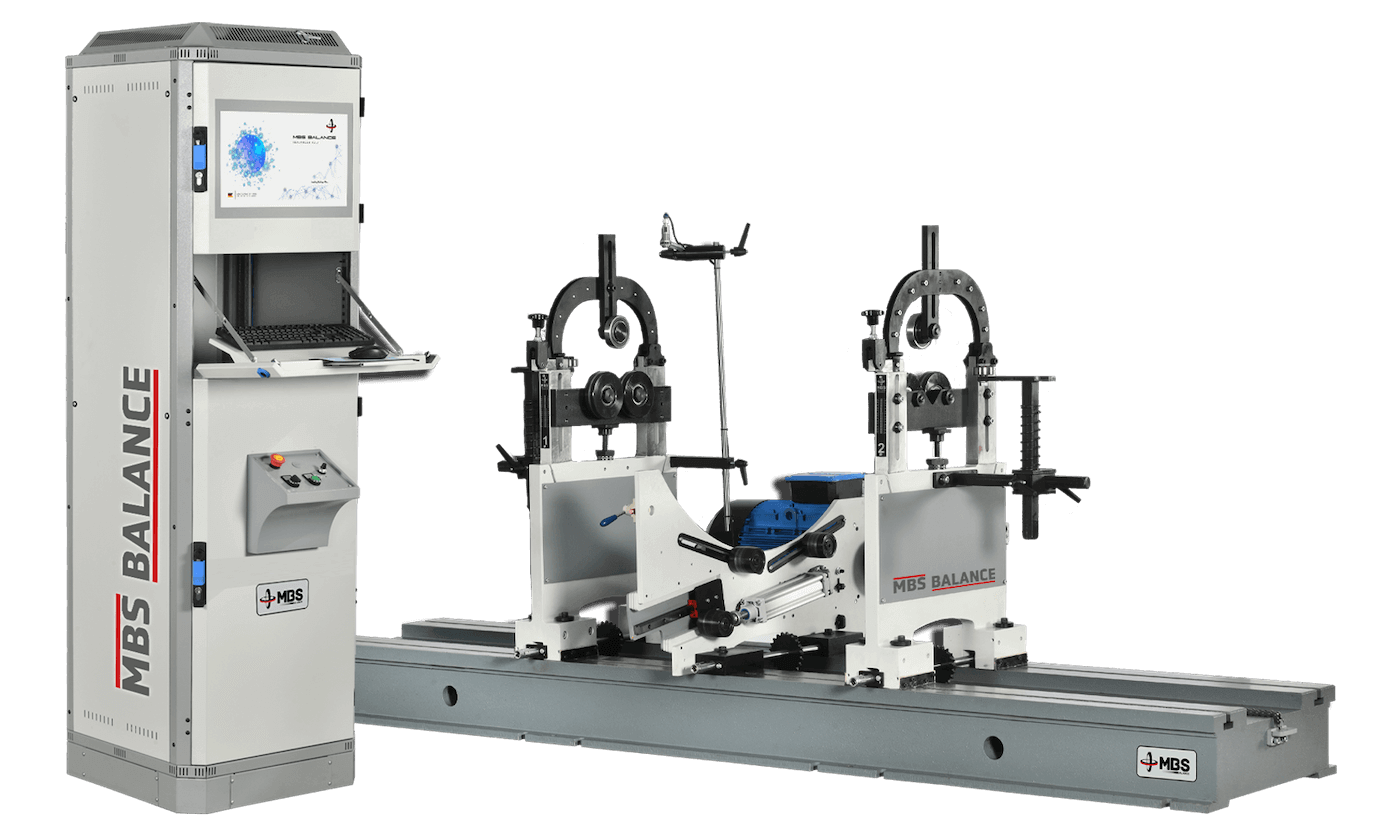

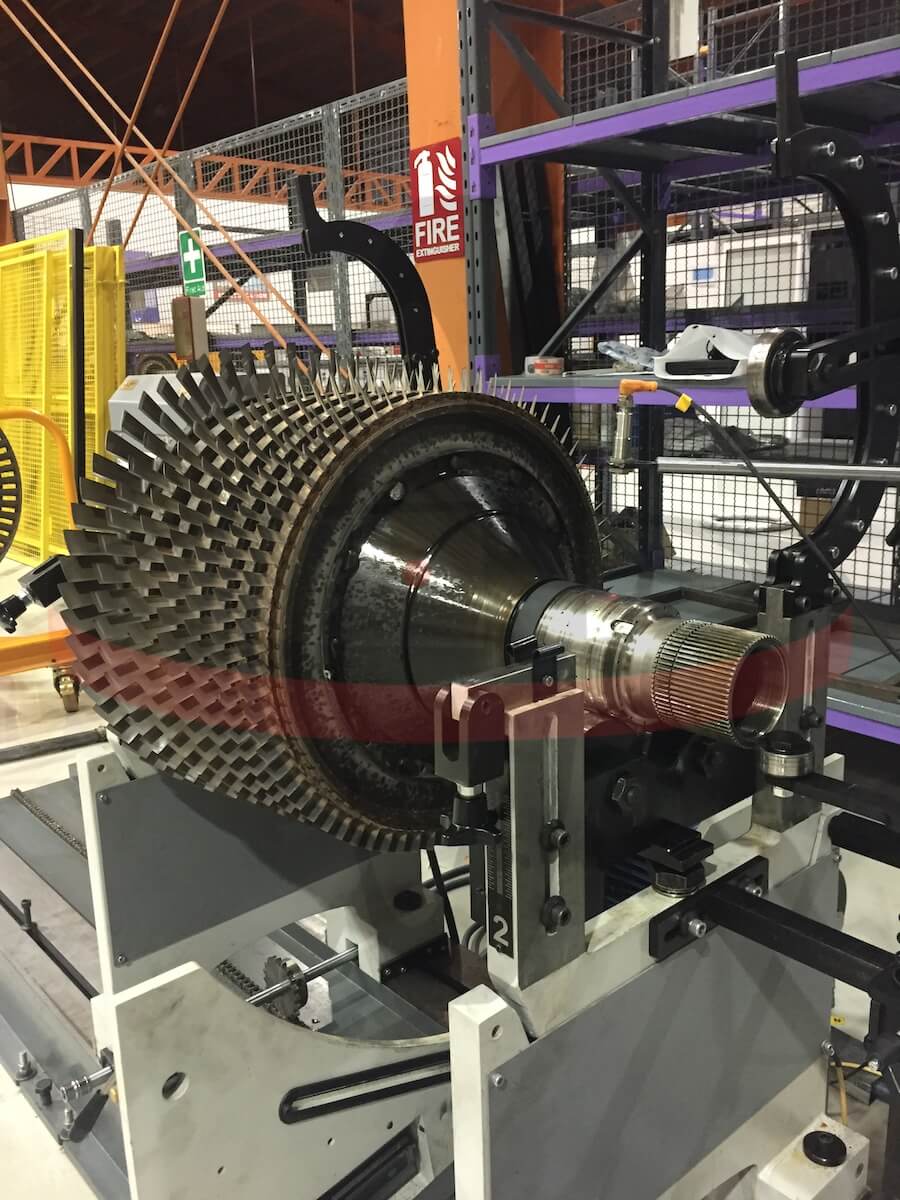

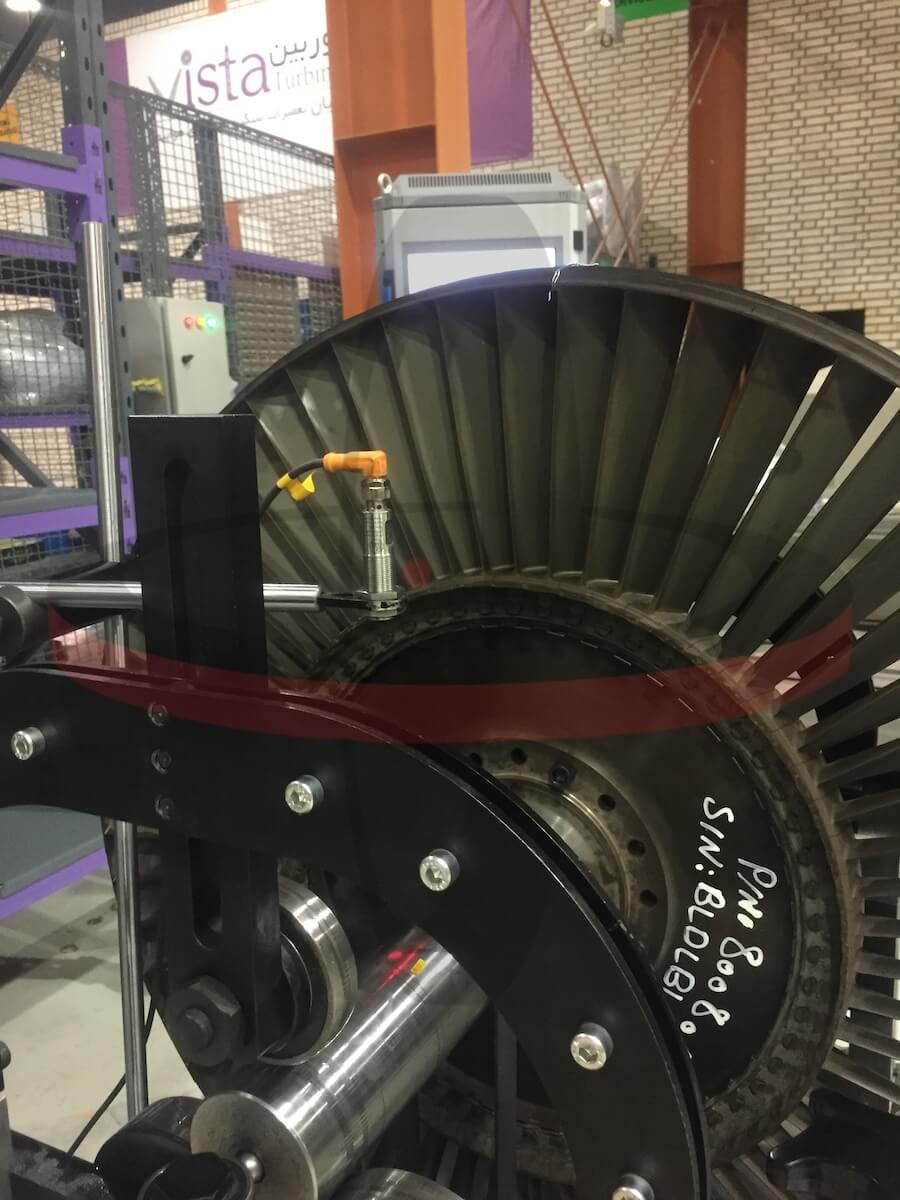

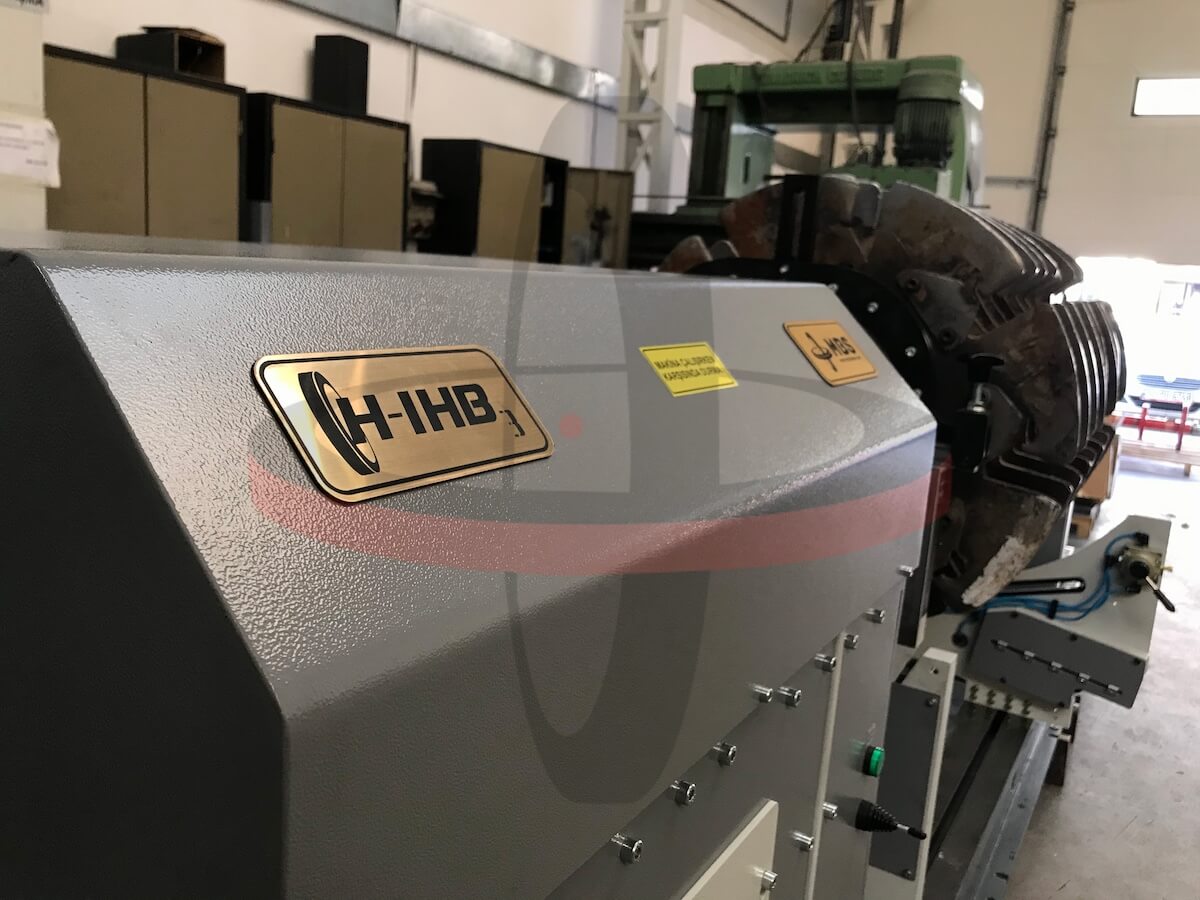

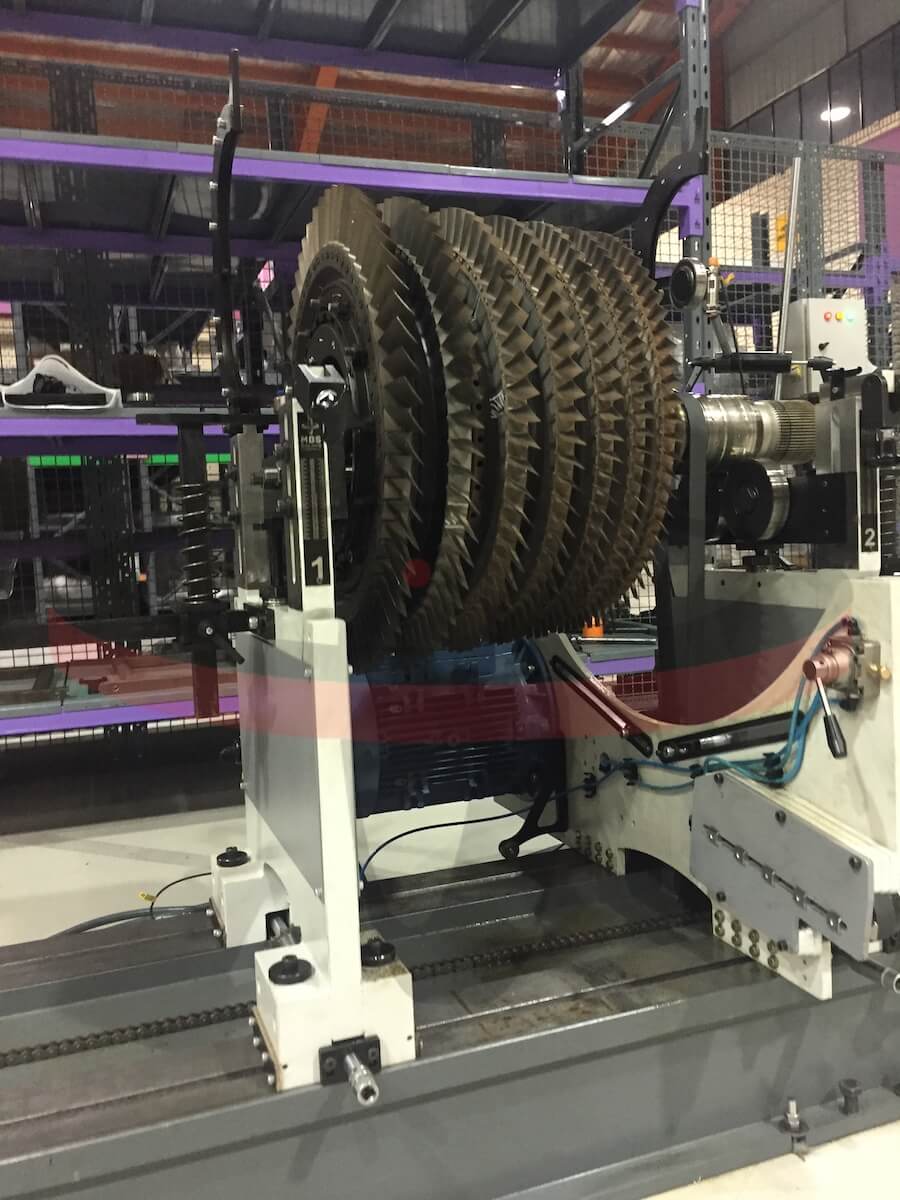

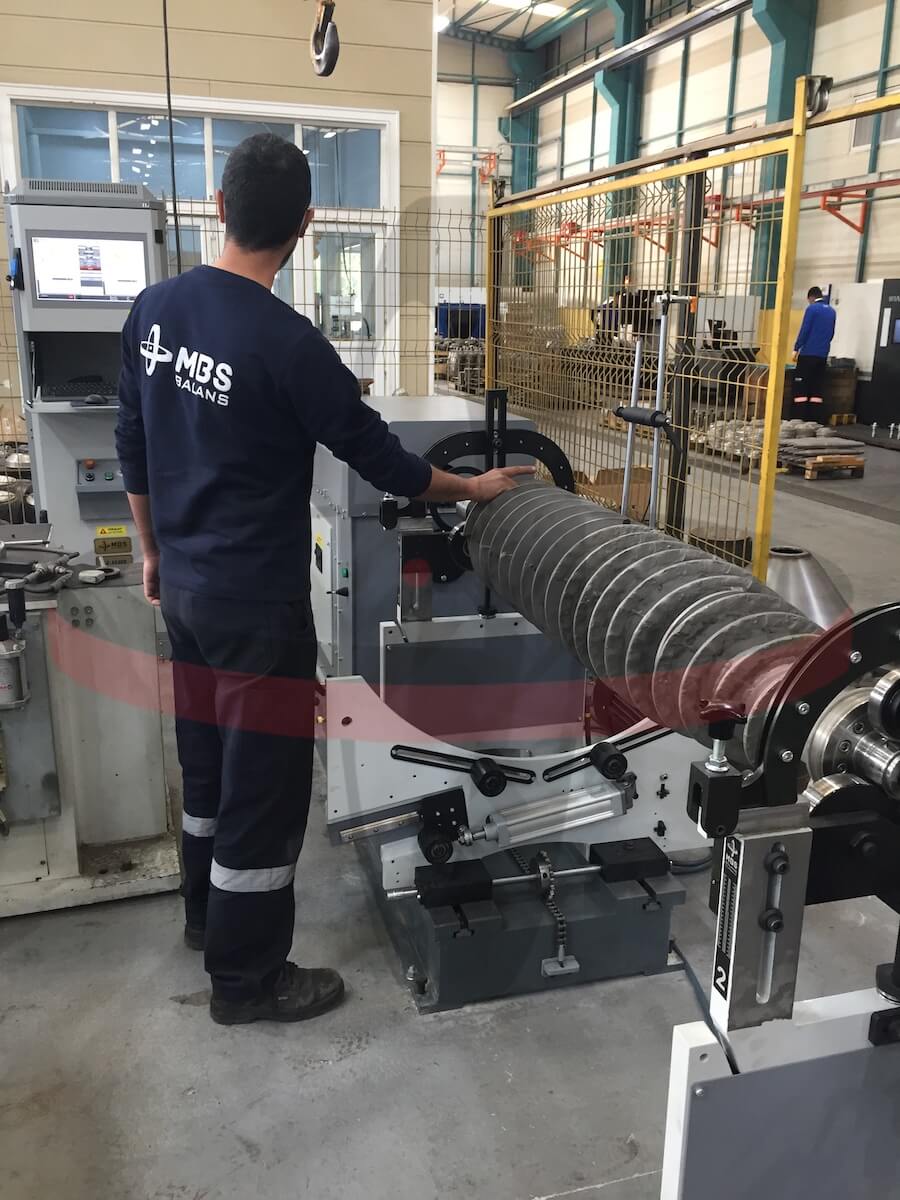

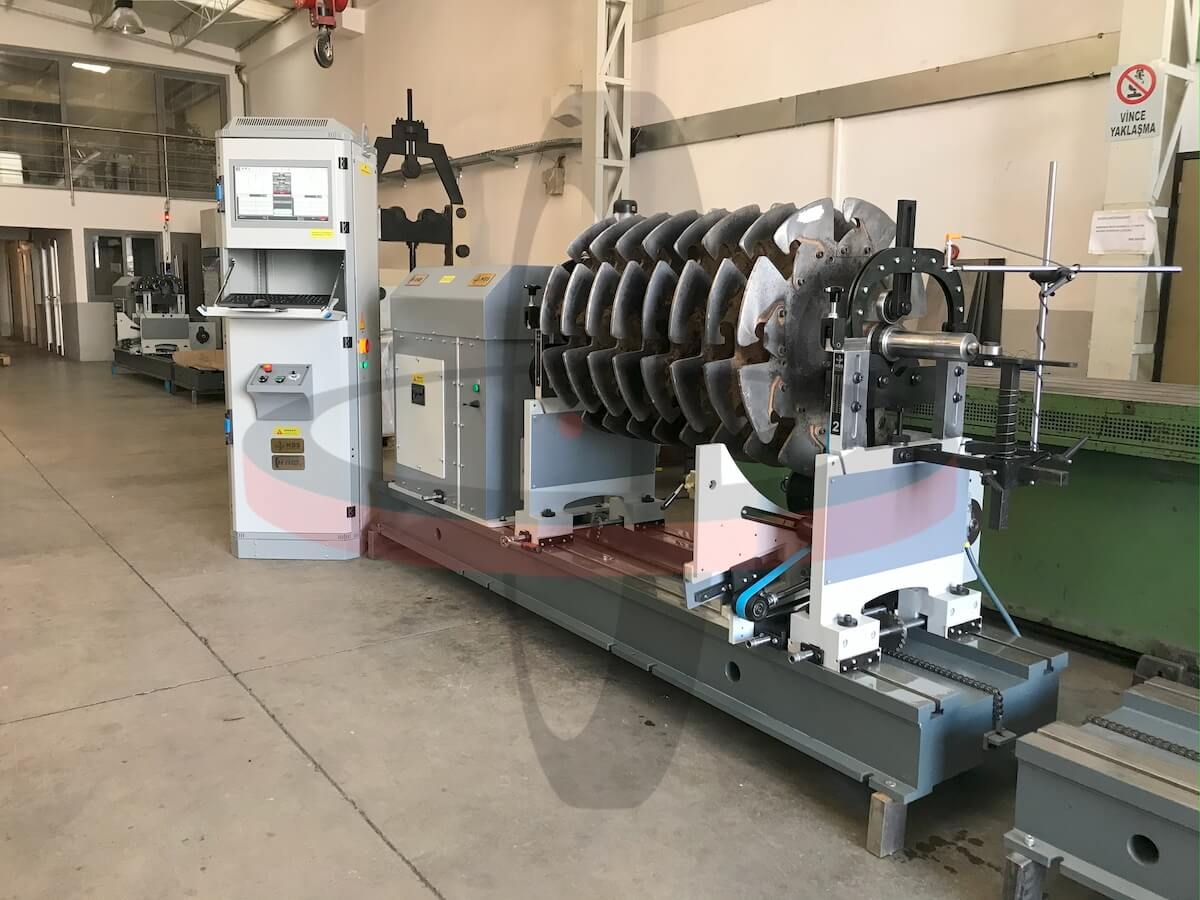

Product Gallery
