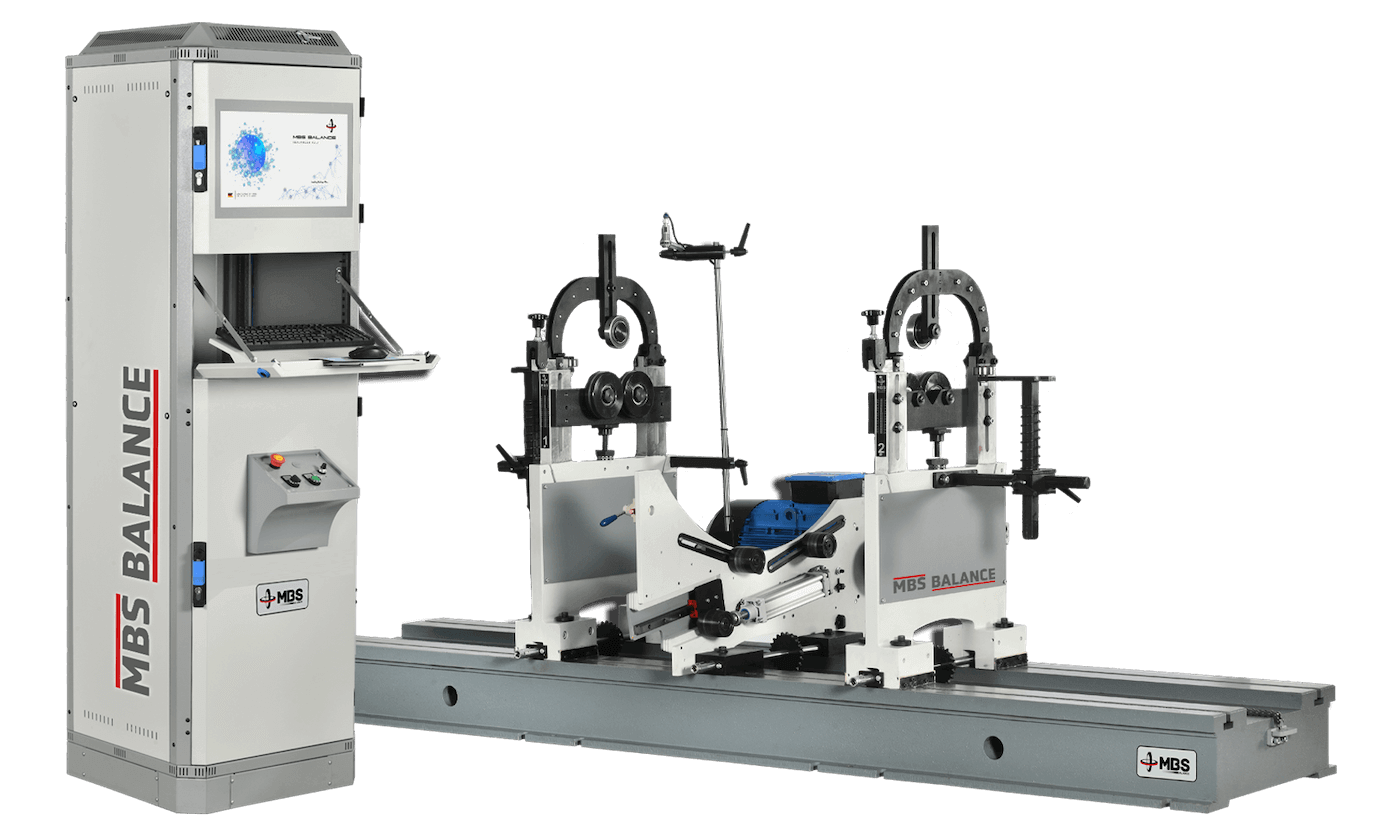

Horizontal Balancing Machine H-IHB 1
Product Description
Reliable Balancing Solution with 1 Ton Capacity
The H-IHB 1 Horizontal Balancing Machine is a high-precision balancing device designed for rotor weights ranging from 15 kg to 1000 kg. It provides a wide range of applications by offering dynamic and static balancing for parts with a maximum diameter of 1400 mm. The standard belt drive unit offers an ideal solution for small and medium-sized parts, while the optional shaft drive unit provides superior performance for large-diameter and heavy rotors.
It has an advanced balancing software that can perform tolerance calculations in accordance with ISO 21940 standards. The Windows-based software offers ease of use with its operator-friendly interface and allows operation on different rotor types without requiring recalibration. This CE-certified machine is delivered with installation and training services and offers a long-term solution with its durable structure. Its application area can be further expanded with optional additions like a drilling unit.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 1000 kg |
| Minimum Rotor Weight | 25 kg |
| Maximum Rotor Diameter | 1400 mm |
| Minimum Shaft Diameter | 15 mm |
| Maximum Shaft Diameter | 240 mm |
| Motor Power | 7.5 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 3000 mm |
Application Areas
- Rotors
- Fans and propellers
- Turbines and separators
- Industrial drums and shafts
- Precise balancing for heavy-weight parts
Why the H-IHB 1?
Discover the standout features of the H-IHB 1:
- Precise balancing for large and heavy parts
- Tolerance calculations in compliance with the ISO 21940 standard
- User-friendly interface and advanced software
- Durable structure and high performance
Product Gallery
