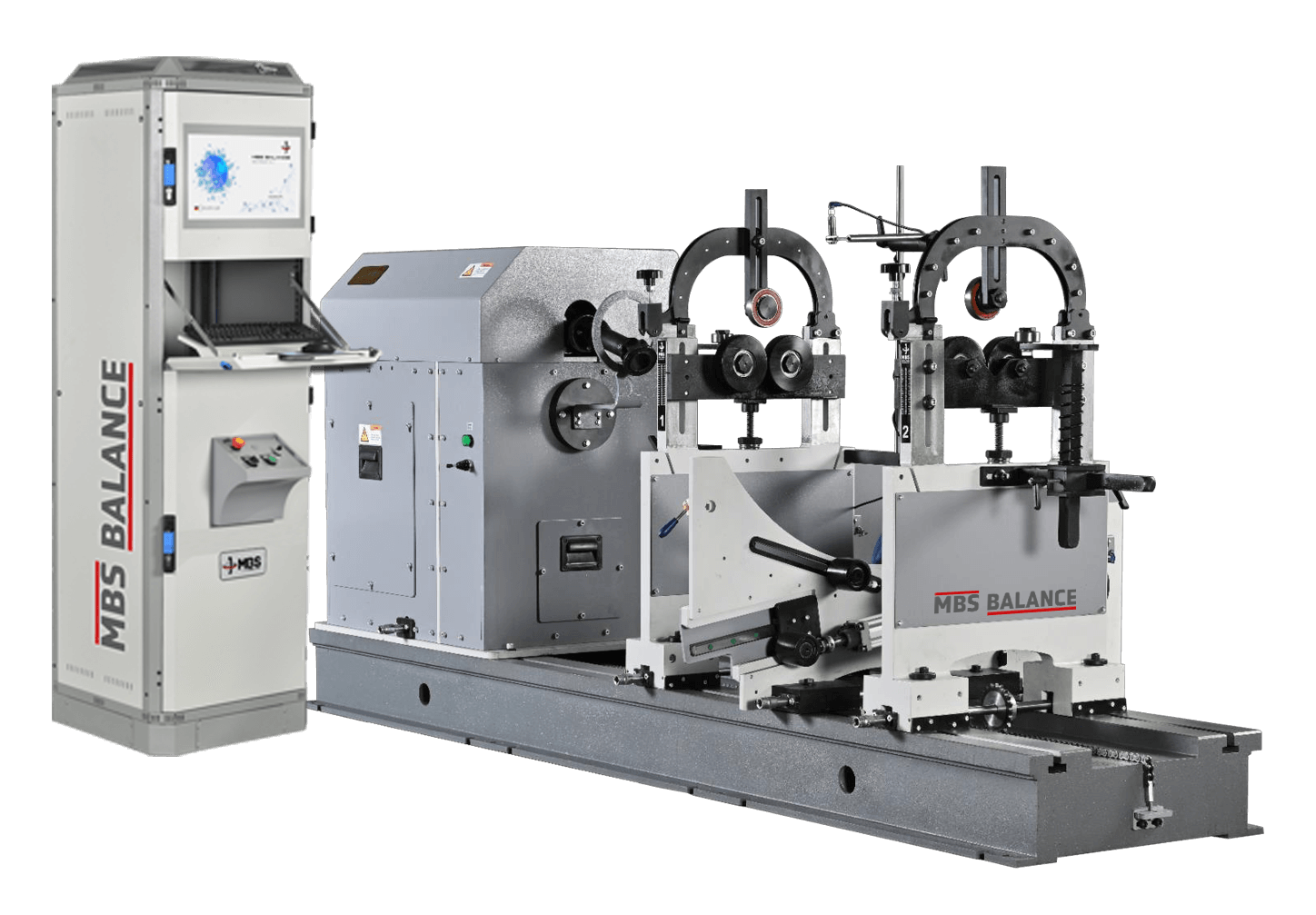

Horizontal Balancing Machine H-IHB 5
Product Description
Powerful and Precise Balancing Solution with a 5 Ton Capacity
The H-IHB 5 Horizontal Balancing Machine is a powerful and durable device specially designed for rotor weights ranging from 60 kg to 5000 kg. This machine, which supports rotor diameters up to 1400 mm, ensures high performance and precision in industrial processes. The standard belt drive unit offers an ideal solution for medium-sized rotors, while the optional shaft drive unit provides superior performance for large and heavy rotors.
With its advanced software that supports tolerance calculations in compliance with ISO 21940 standards, it allows operation for all types of rotors without requiring recalibration. Thanks to its operator-friendly, Windows-based software, the balancing process is completed quickly and efficiently. The CE-certified H-IHB 5 is delivered with installation and training support, and its area of use can be expanded with optional additions like a drilling unit.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 5000 kg |
| Minimum Rotor Weight | 60 kg |
| Maximum Rotor Diameter | 1600 mm |
| Minimum Shaft Diameter | 20 mm |
| Maximum Shaft Diameter | 240 mm |
| Motor Power | 15 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 3000 mm |
Application Areas
- Large rotors
- Turbines
- Industrial drums and shafts
- Propellers
- Heavy-load industrial parts
Why the H-IHB 5?
Discover the standout features of the H-IHB 5:
- High performance for heavy and large rotors
- Tolerance calculations in compliance with ISO 21940 standards
- User-friendly interface and advanced software
- Durable structure and long-lasting use
