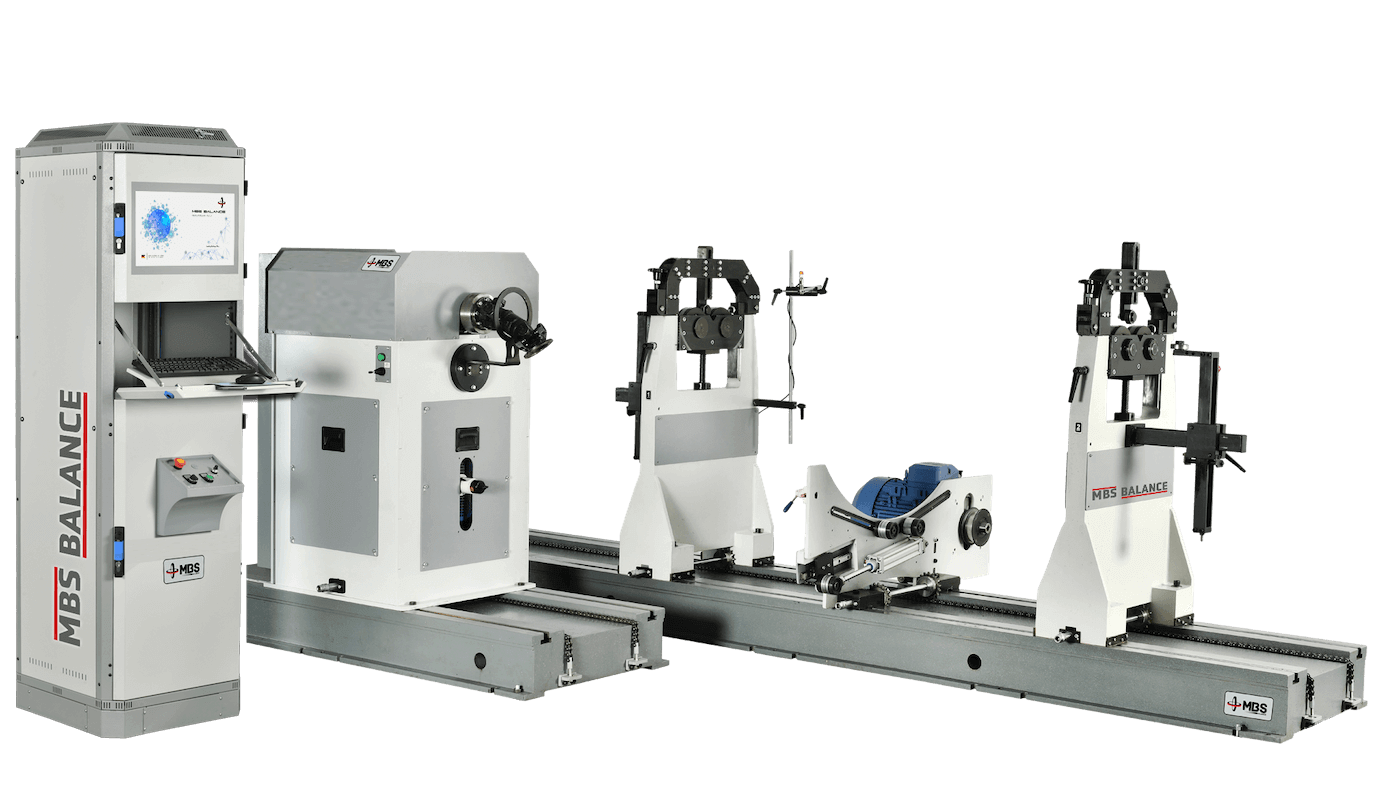

Horizontal Balancing Machine H-IHB 7
Product Description
Precise and Reliable Balancing for 7-Ton Rotors
The H-IHB 7 Horizontal Balancing Machine is a high-precision device designed for rotor weights ranging from 100 kg to 7000 kg and rotor diameters up to 2000 mm. Providing superior accuracy for both dynamic and static balancing operations, this machine is an ideal solution for heavy-load industrial parts.
The standard belt drive unit offers precision for medium-sized parts, while the optional shaft drive unit ensures the best performance for large and heavy rotors. With its advanced software that can perform tolerance calculations in compliance with ISO 21940 standards and a Windows-based user-friendly interface, it offers an efficient working experience. The CE-certified H-IHB 7 is delivered with training and installation services.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 7000 kg |
| Minimum Rotor Weight | 100 kg |
| Maximum Rotor Diameter | 2000 mm |
| Minimum Shaft Diameter | 40 mm |
| Maximum Shaft Diameter | 320 mm |
| Motor Power | 18 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 4000 mm |
Application Areas
- Medium and large rotors

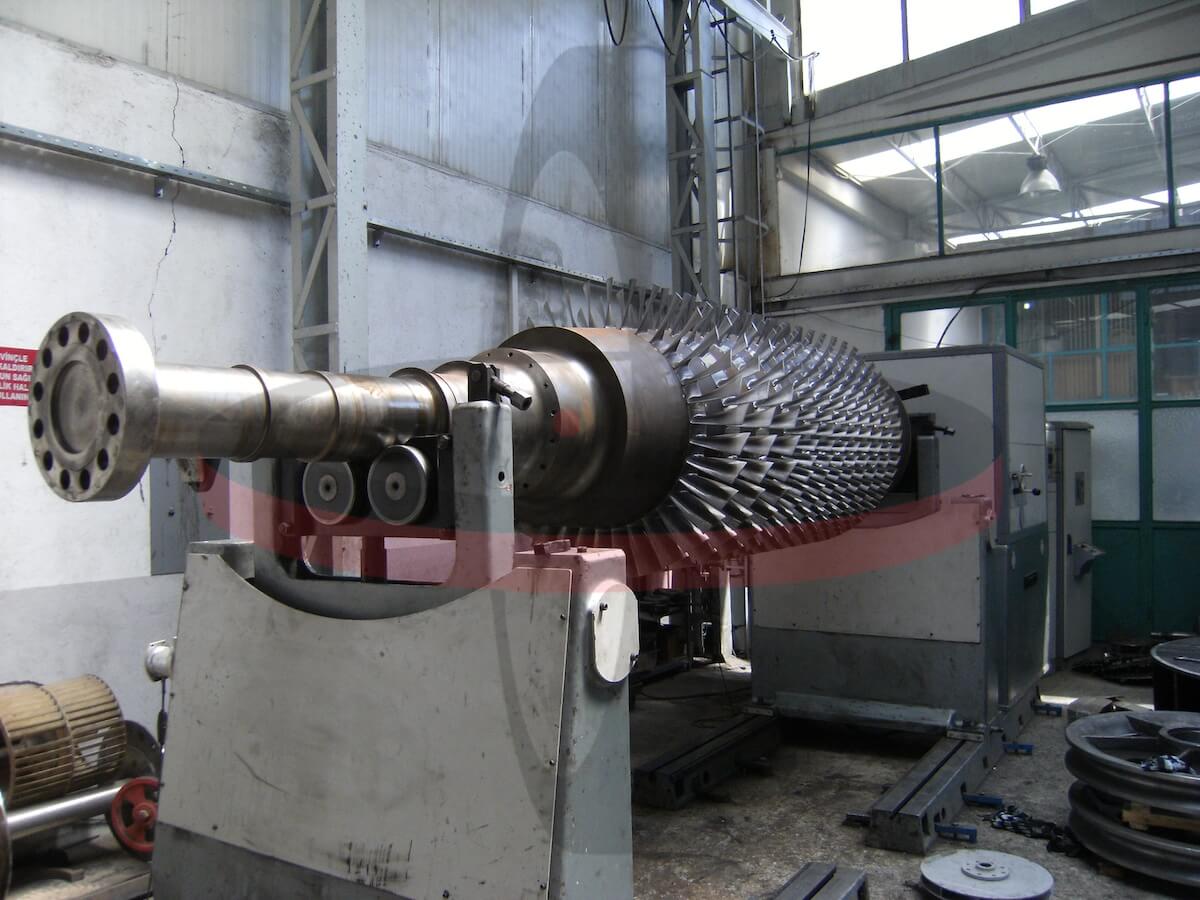

- Turbines

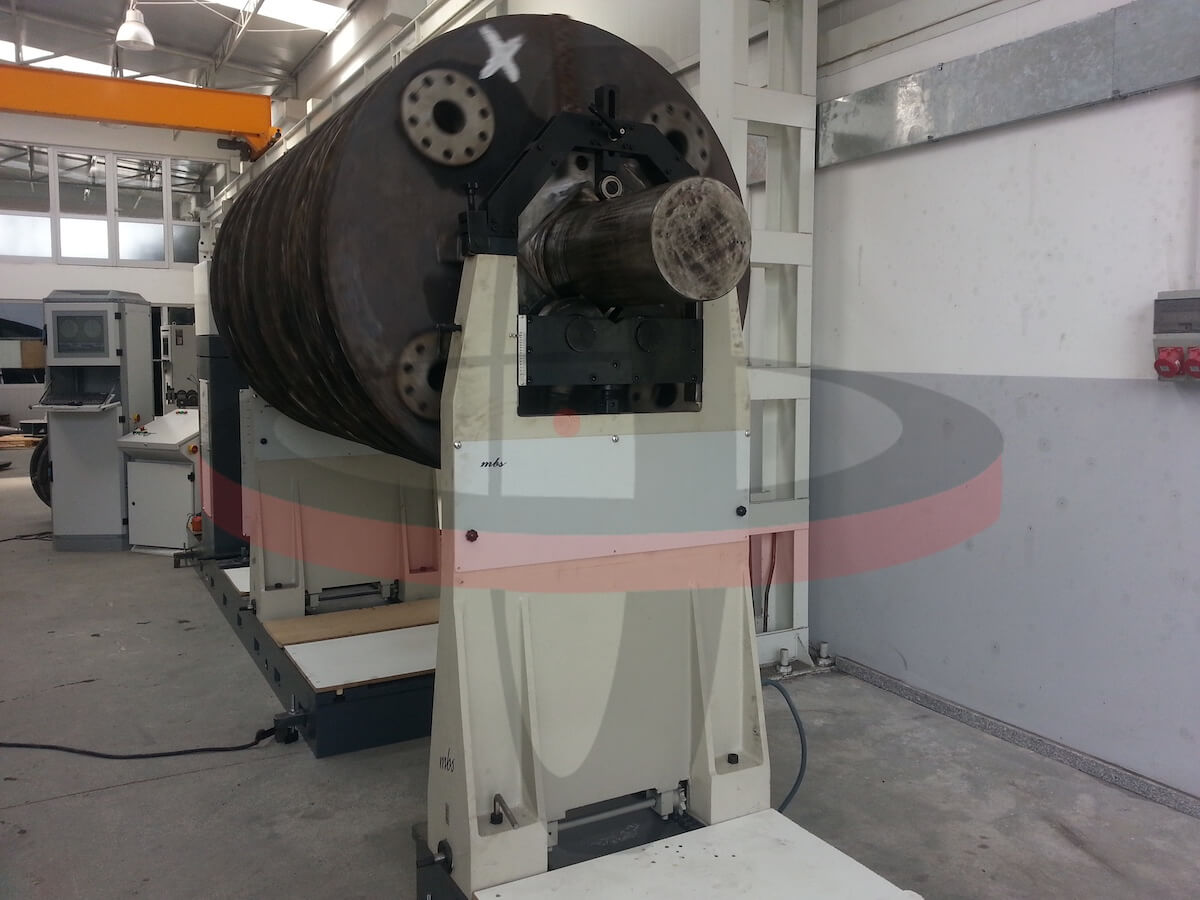

- Industrial drums

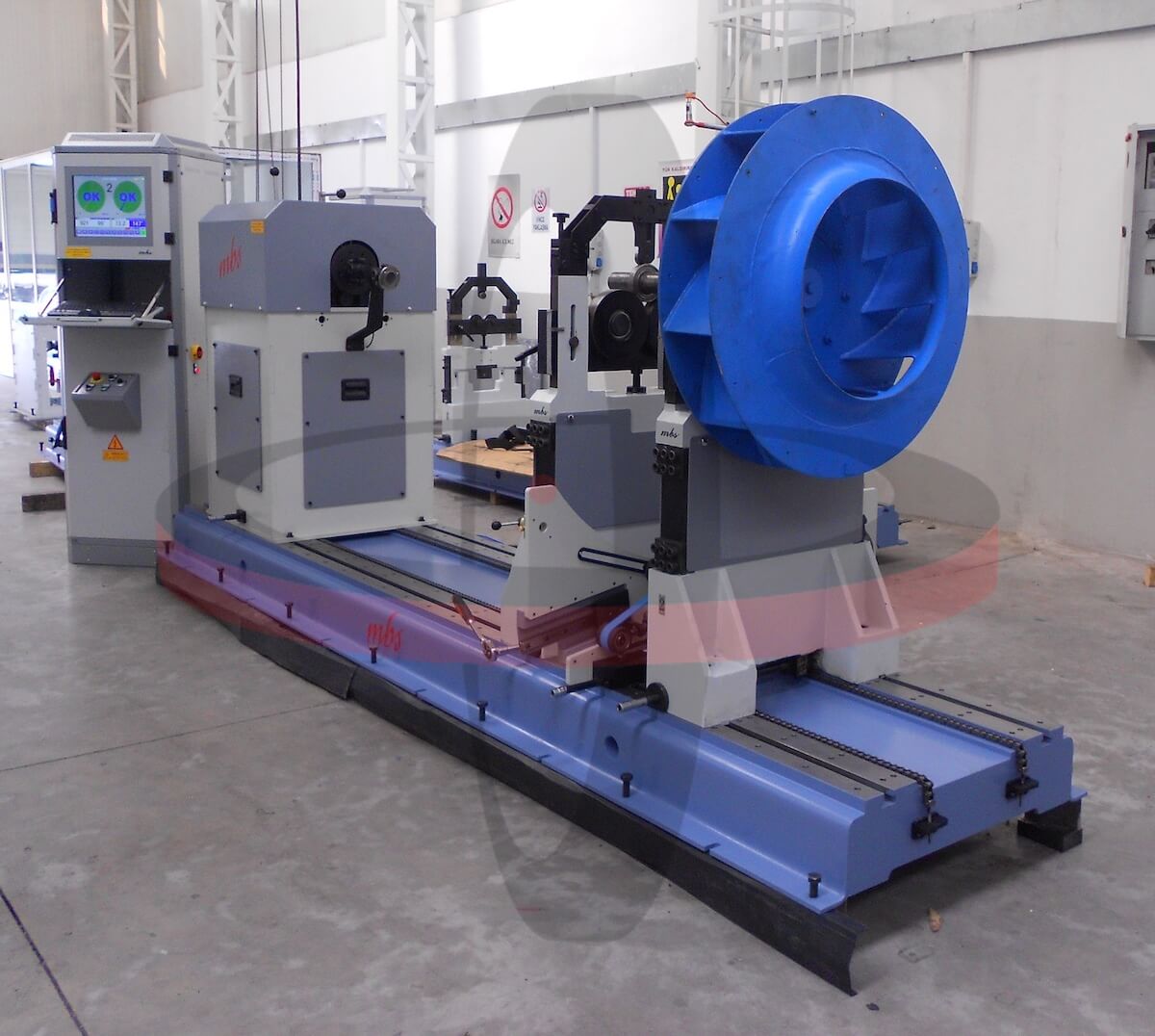

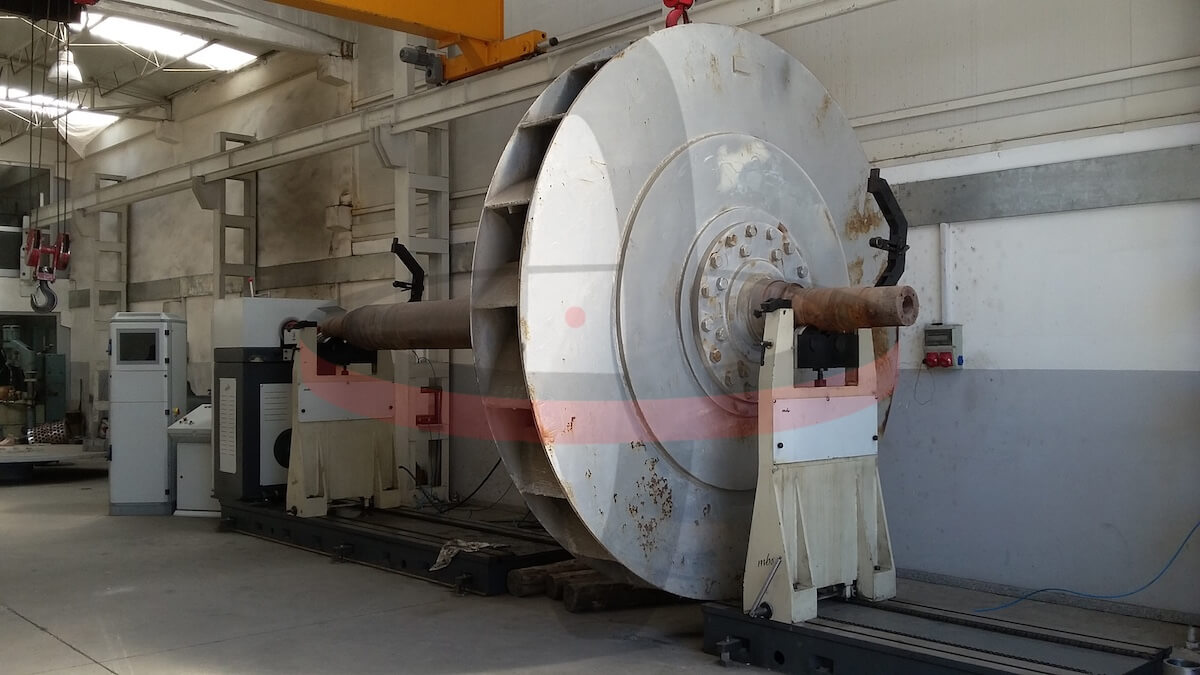

- Fans and propellers
- Heavy industry applications
Why the H-IHB 7?
Discover the standout features of the H-IHB 7:
- High performance for heavy and large rotors
- Tolerance calculations in compliance with ISO 21940 standards
- User-friendly interface and advanced software
- Durable structure and long-lasting use

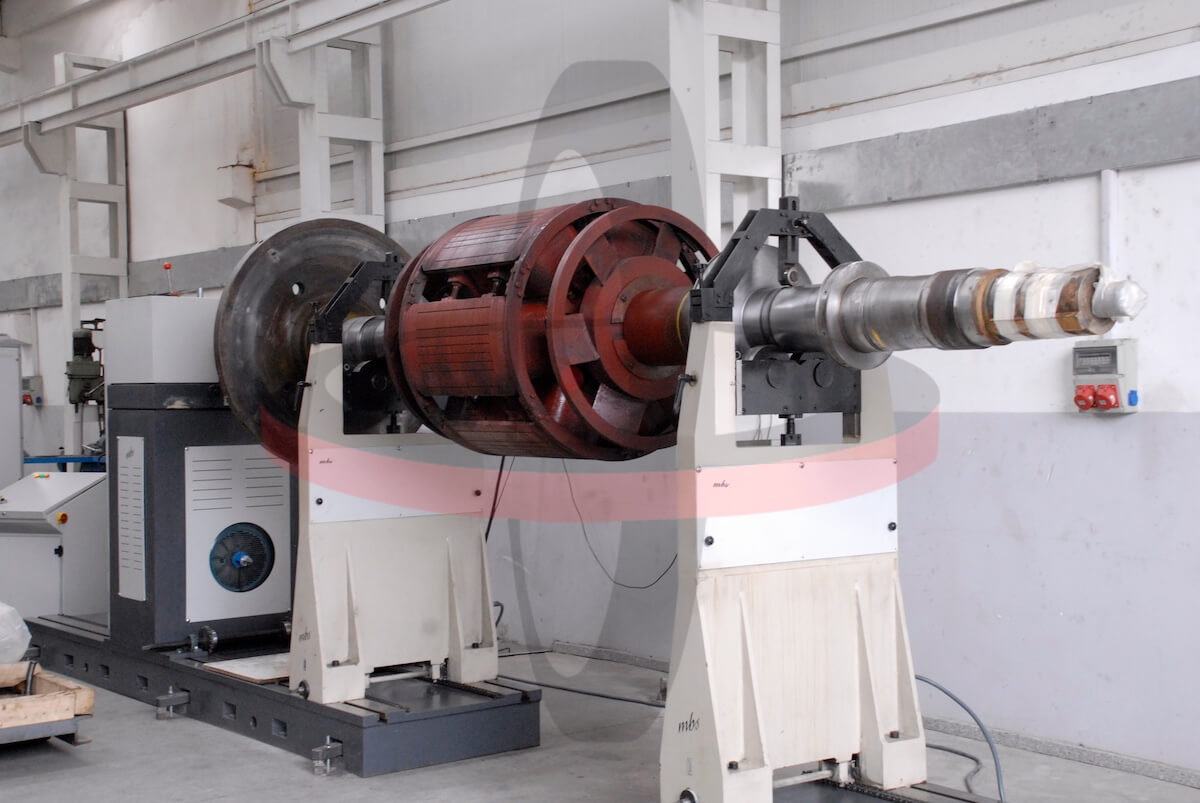

Product Gallery
