Horizontal Balancing Machines

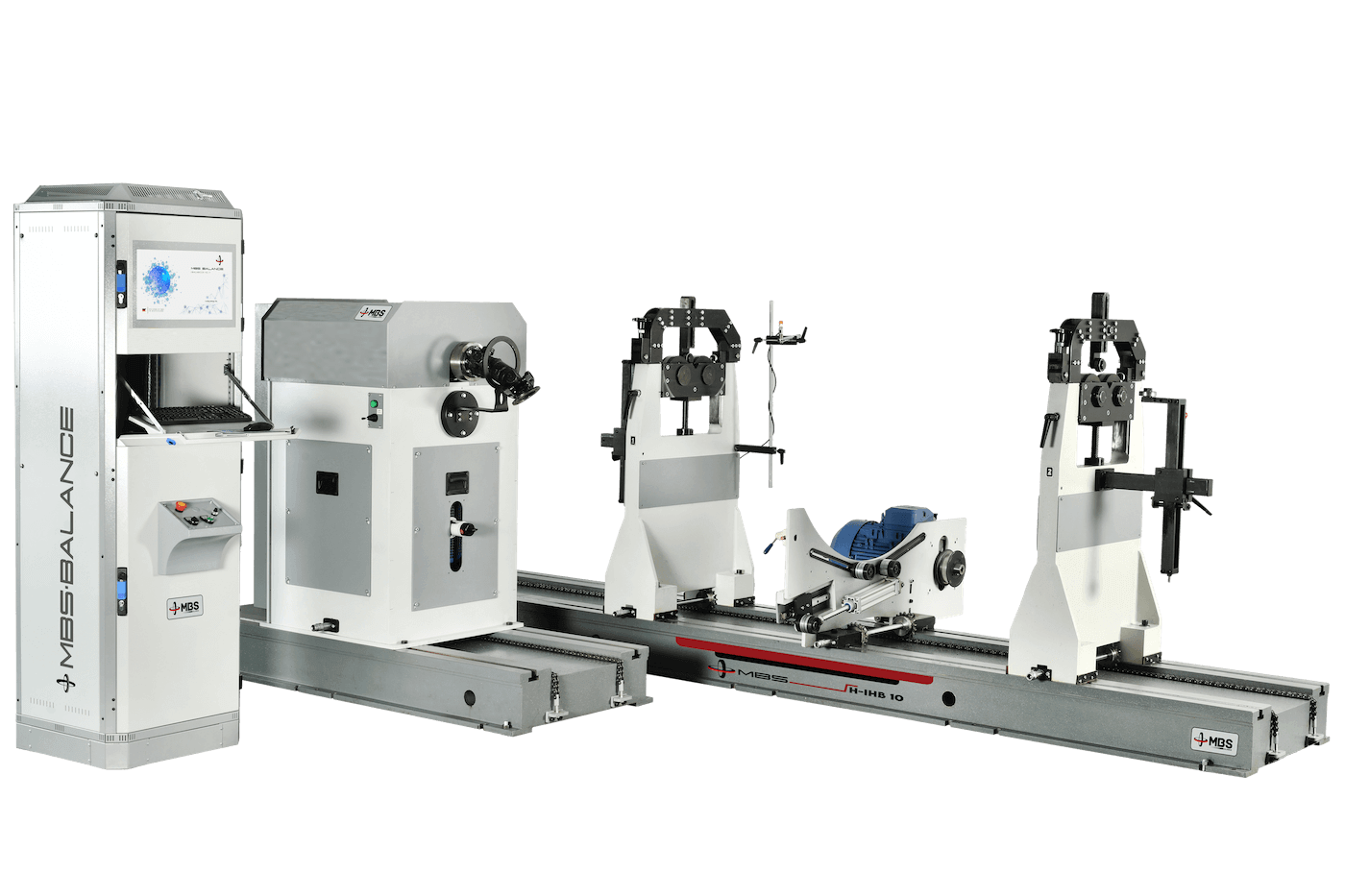

Horizontal Balancing Machine H-IHB 10

Product Code: H-IHB 10

Product Description

For heavy industry: horizontal balancing with 10 t capacity.

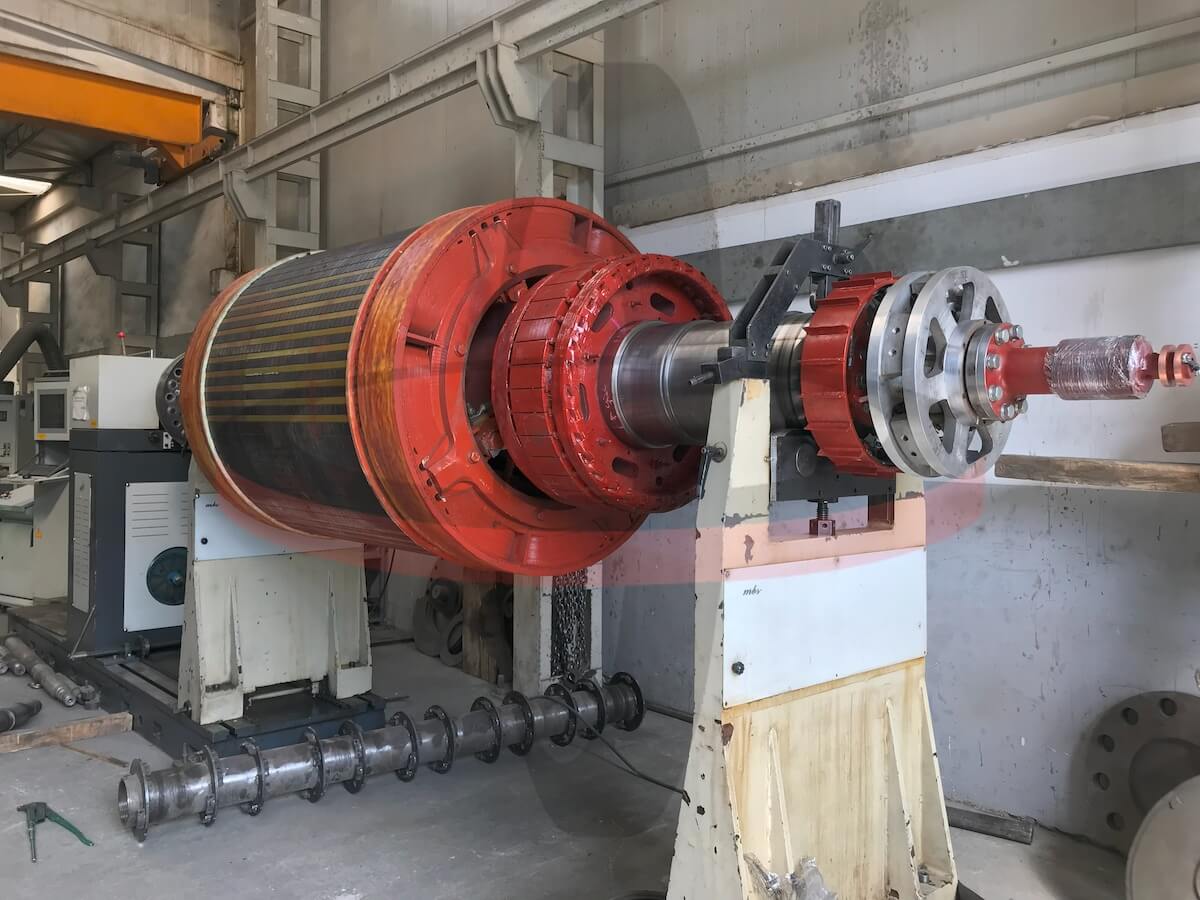

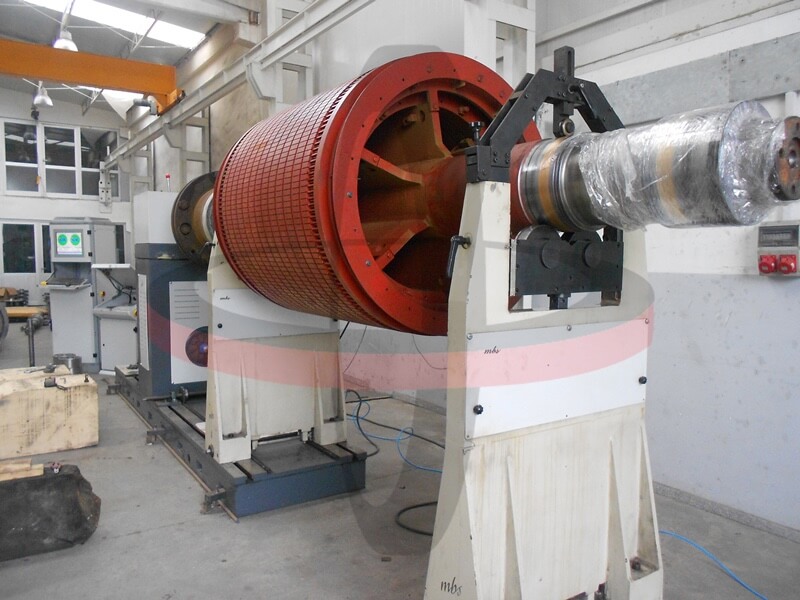

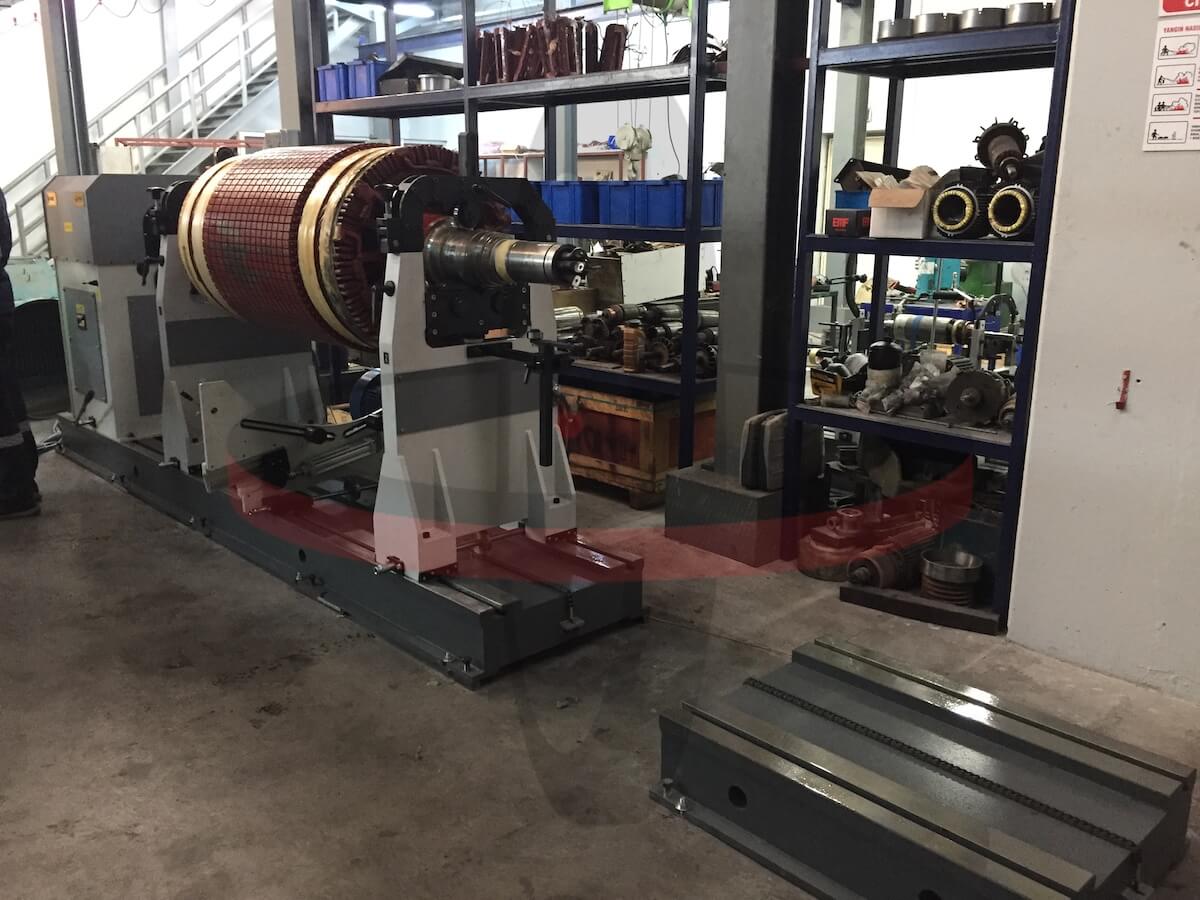

The H-IHB-10 is a horizontal balancing machine for heavy parts from 150 kg to 10,000 kg, such as large rotors, turbines, generators, industrial drums and shafts. It balances statically and dynamically up to a rotor diameter of Ø 2000 mm; universal-joint drive is standard, and belt drive is available in addition as an option.

Technical Specifications

Capacity
Maximum rotor weight10,000 kg
Minimum rotor weight150 kg
Maximum rotor diameter2000 mm
Shaft diameter range40 – 320 mm
Mechanics and drive
Bed length4000 mm
Correction planesStatic / Dynamic
Motor power22 kW
Drive unitUniversal-joint drive
Measurement and software
Vibration transducers2 piezoelectric transducers
Speed and phase referenceRetro-reflective sensor (RPM sensor)
Measuring softwareMBS Balance iBalancer Software
Interface languageEnglish (multilingual module optional)
Operator computerAIO PC · Windows

Application Areas

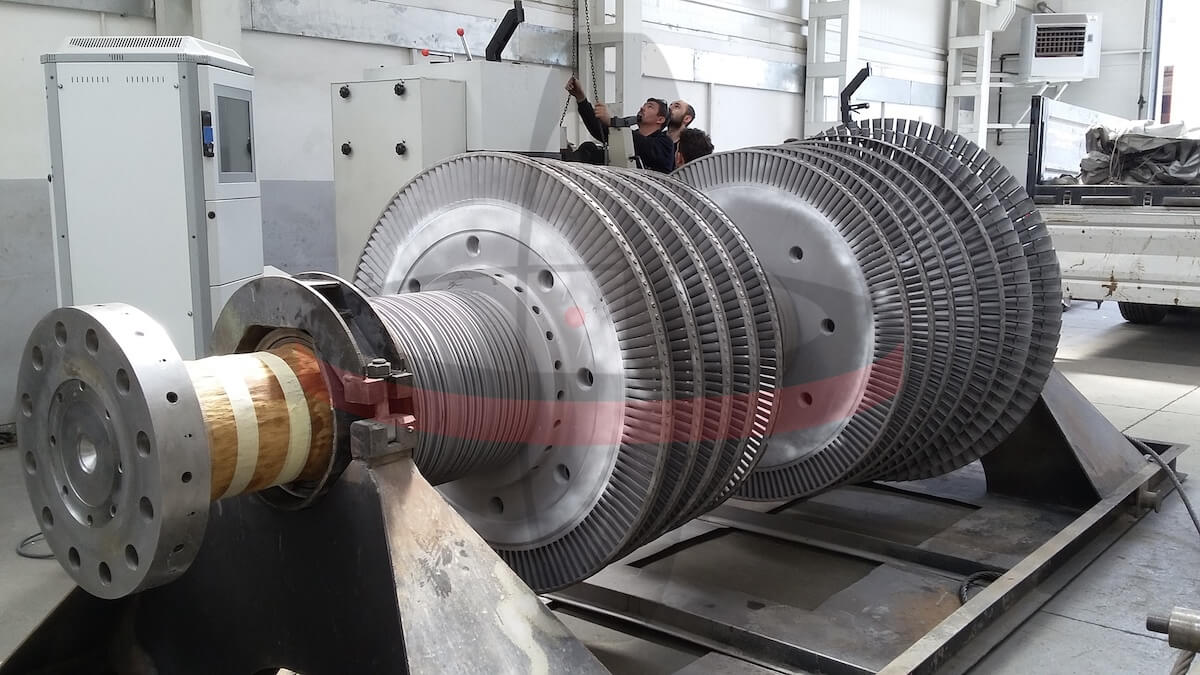

  • Turbine wheel

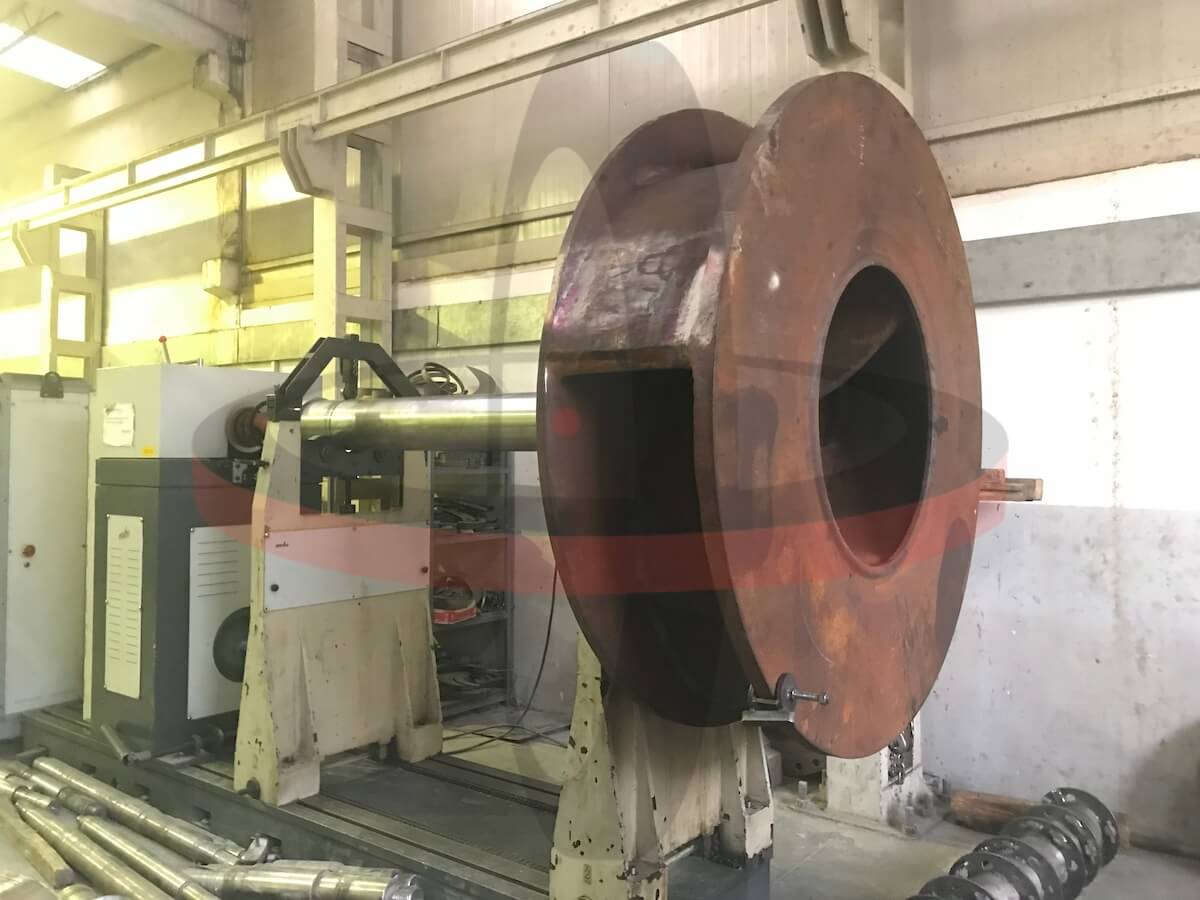

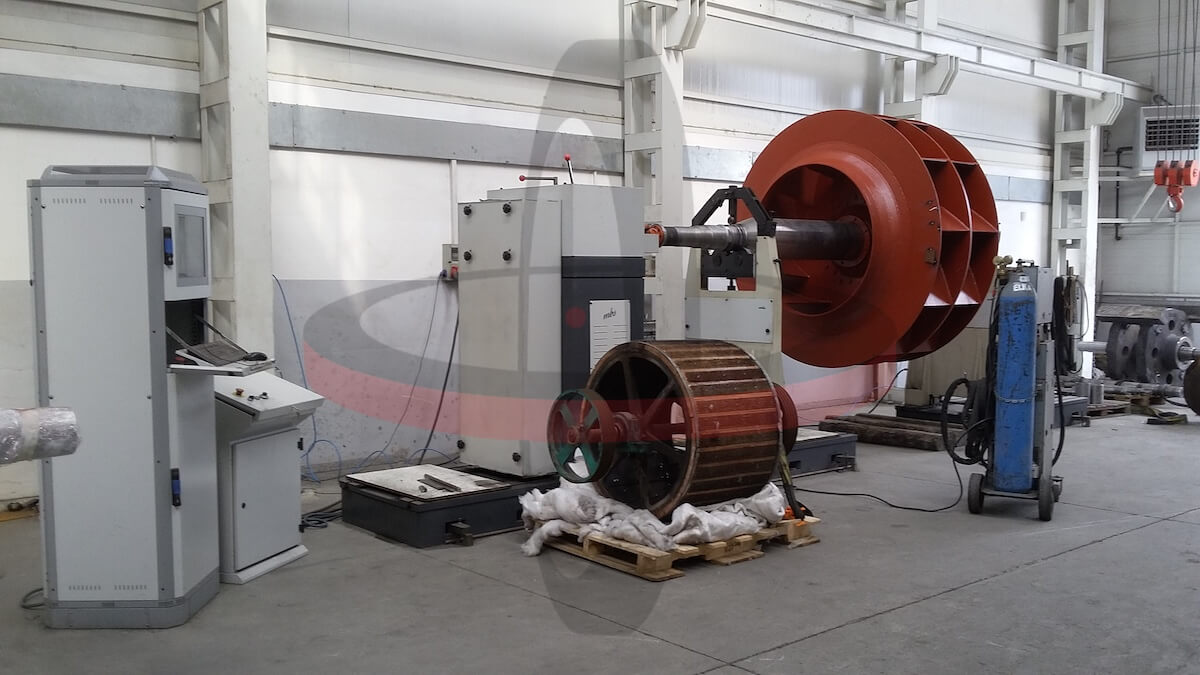

  • Radial fan
  • Double-inlet fan
  • Grooved pulley

Why the H-IHB-10?

Key features of the H-IHB-10:

  • Static and dynamic balancing. Measurement in one or two correction planes; unbalance mass and angle are shown on screen.
  • Universal-joint drive. Standard universal-joint drive; belt drive available in addition as an option.
  • Powerful drive. 22 kW motor with frequency inverter; adjustable speed.
  • Heavy-duty design. Reinforced bed and bearing pedestals; shaft diameter range 40–320 mm.
  • iBalancer software. Rotor dimensions are entered; the tolerance is calculated according to ISO 21940-11.
  • Adjustable bearing pedestals. The bearing pedestals slide along the 4000 mm bed to suit the rotor length.
  • On-machine correction. Correction position and mass are shown on screen; correction with the rotor on the machine.
  • Safety. CE conformity; an interlocked safety fence can be added as an option.
