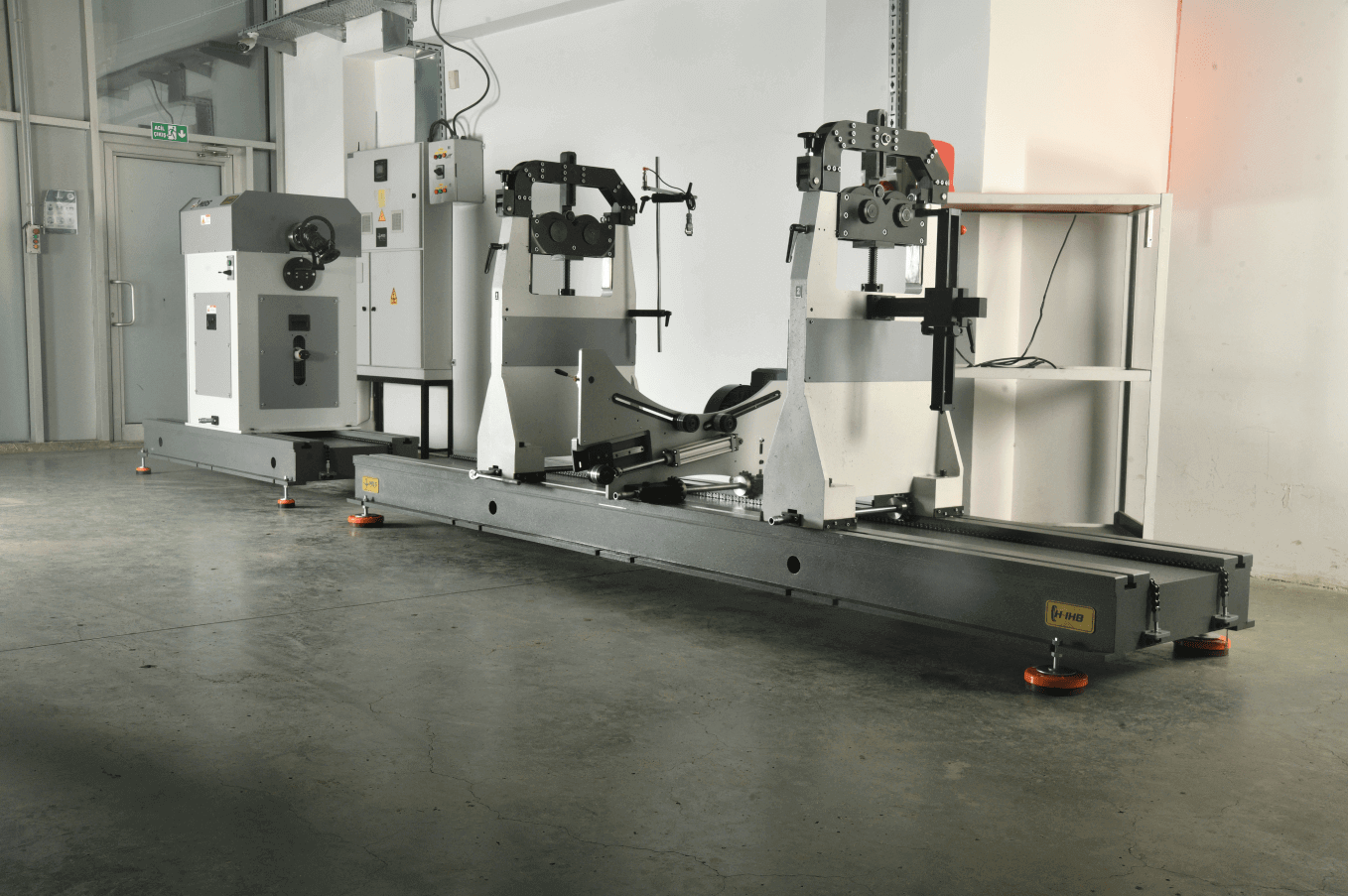

Horizontal Balancing Machine H-IHB-20
Product Description
Powerful and Precise Balancing Solution for 20-Ton Rotors
The H-IHB 20 Horizontal Balancing Machine is a superior-performance device designed for rotor weights ranging from 150 kg to 20,000 kg and rotor diameters up to 3000 mm, meeting the needs of heavy industry. Providing high accuracy and reliability in dynamic and static balancing operations, this machine is an ideal solution for heavy-load industrial parts.
The machine is supported by advanced software that can perform tolerance calculations in compliance with ISO 21940 standards. The standard belt drive unit offers an ideal operation for medium-sized rotors, while the optional shaft drive unit ensures optimum performance for large and heavy parts. The CE-certified H-IHB 20 is equipped with a Windows-based operating system and is delivered with training and installation support.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 20,000 kg |
| Minimum Rotor Weight | 180 kg |
| Maximum Rotor Diameter | 3000 mm |
| Minimum Shaft Diameter | 50 mm |
| Maximum Shaft Diameter | 400 mm |
| Motor Power | 37 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 4000 mm |
Application Areas
- Large rotors
- Industrial drums and shafts
- Turbines and generators
- Heavy-load industrial parts
- Large-diameter rotors requiring high precision
Why the H-IHB 20?
Discover the standout features of the H-IHB 20:
- High precision for heavy and large rotors
- Tolerance calculations in compliance with ISO 21940 standards
- User-friendly interface and advanced software
- Durable structure and long-term reliability
