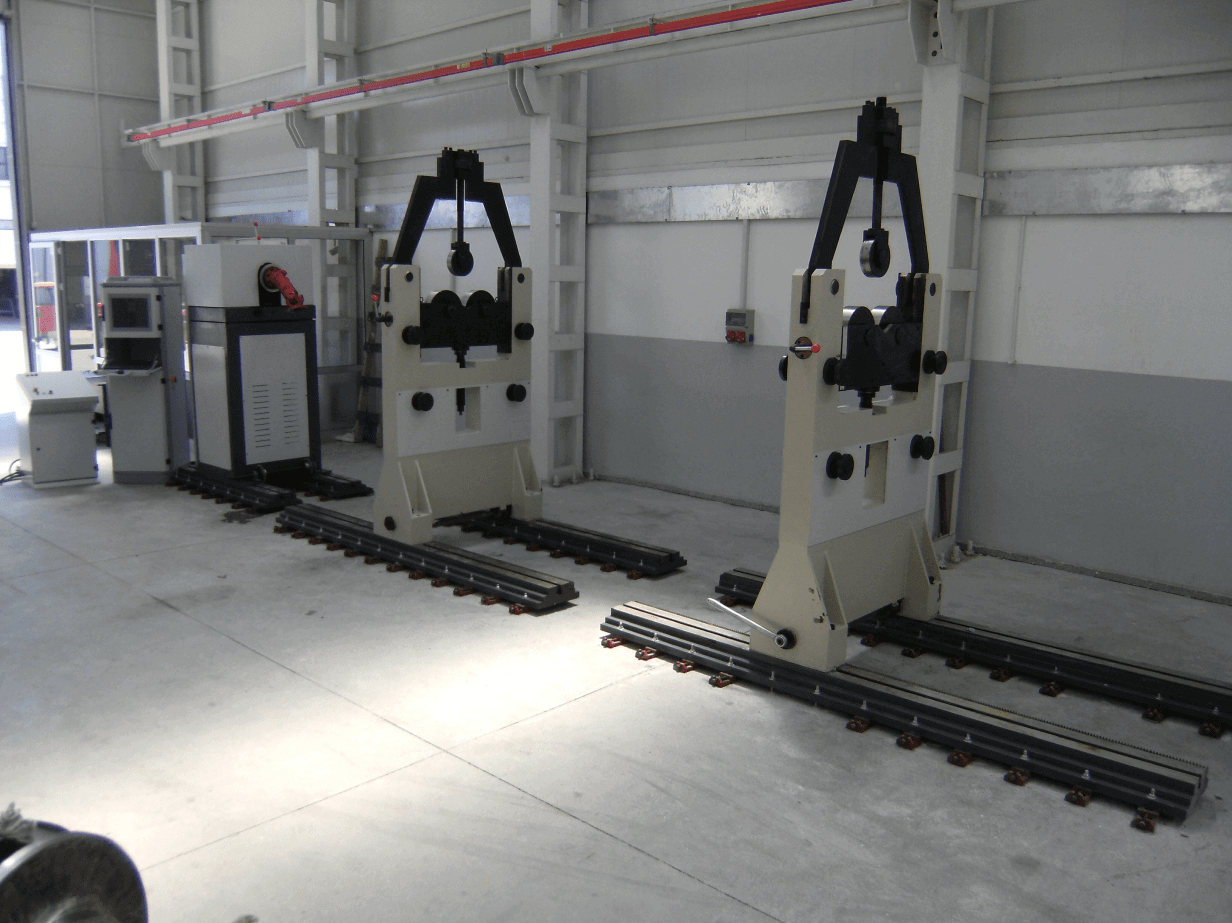

Horizontal Balancing Machine H-IHB 50
Product Description
Powerful and Precise Balancing Solution for 50-Ton Rotors
The H-IHB 50 Horizontal Balancing Machine is a high-capacity device designed for heavy industry applications, with rotor weights ranging from 150 kg to 50,000 kg and rotor diameters up to 3900 mm. Providing excellent performance for both dynamic and static balancing operations, this machine offers precise balancing on heavy-load and large-diameter rotors.
Its advanced software, which supports tolerance calculations in compliance with ISO 21940 standards, provides a user-friendly experience. The standard belt drive unit offers ideal operation for medium-sized rotors, while the optional shaft drive unit ensures optimum performance for large and heavy parts. The CE-certified H-IHB 50 is equipped with a Windows-based operating system and is delivered with training and installation support. Its durable structure offers long-lasting use.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 50,000 kg |
| Minimum Rotor Weight | 200 kg |
| Maximum Rotor Diameter | 3900 mm |
| Minimum Shaft Diameter | 70 mm |
| Maximum Shaft Diameter | 480 mm |
| Motor Power | 45 kW |
| Drive Unit | Belt (Standard) or Shaft (Optional) |
| Bed Length | 3000 mm + 3000 mm |
Application Areas
- Large and heavy rotors
- Turbines and generators
- Industrial drums and shafts
- Heavy industry parts requiring high precision
Why the H-IHB 50?
Discover the standout features of the H-IHB 50:
- Precise balancing for heavy and large rotors
- Tolerance calculations in compliance with ISO 21940 standards
- User-friendly interface and advanced software
- Durable structure and long-lasting use
