Optional Balancing Machines

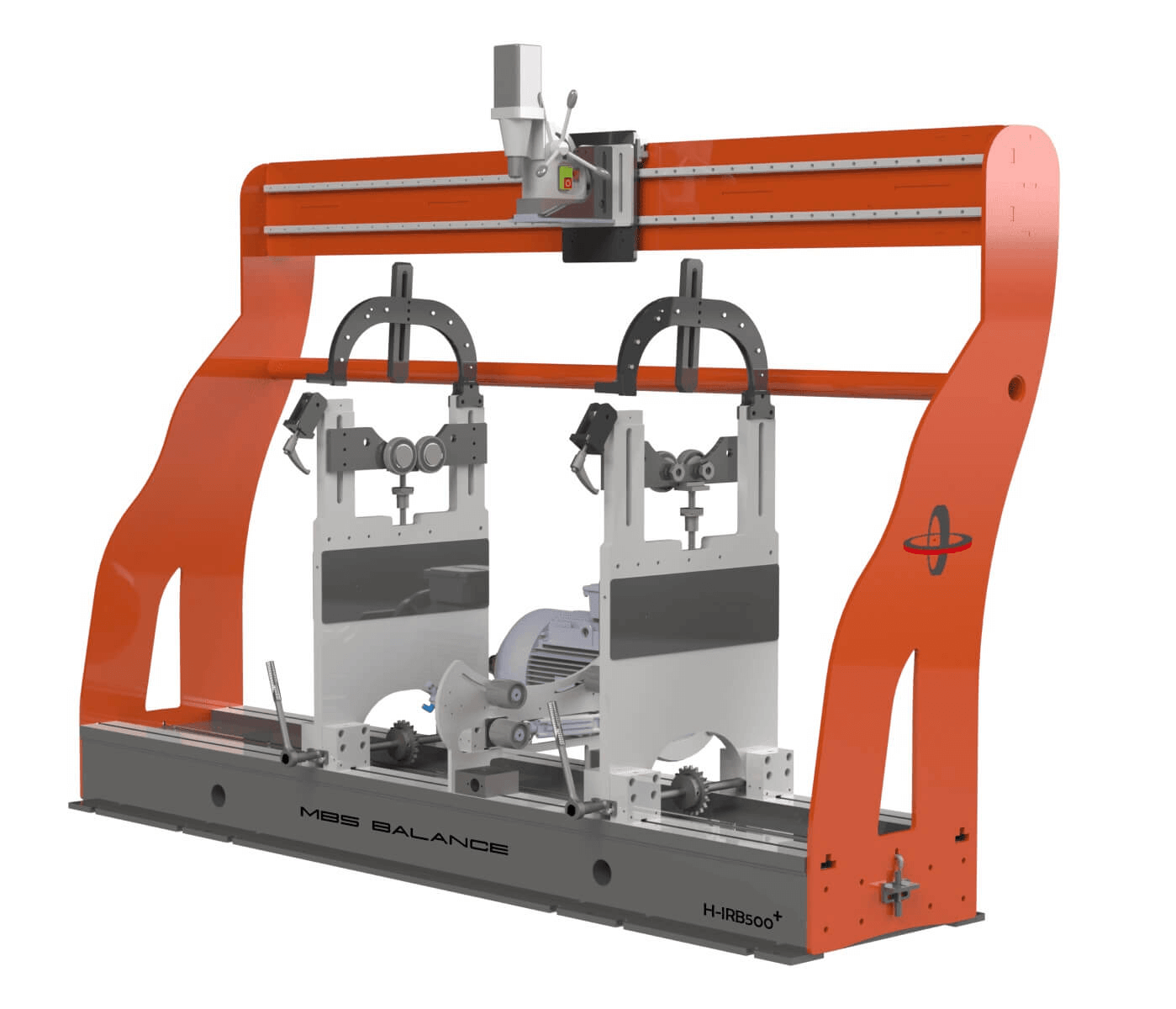

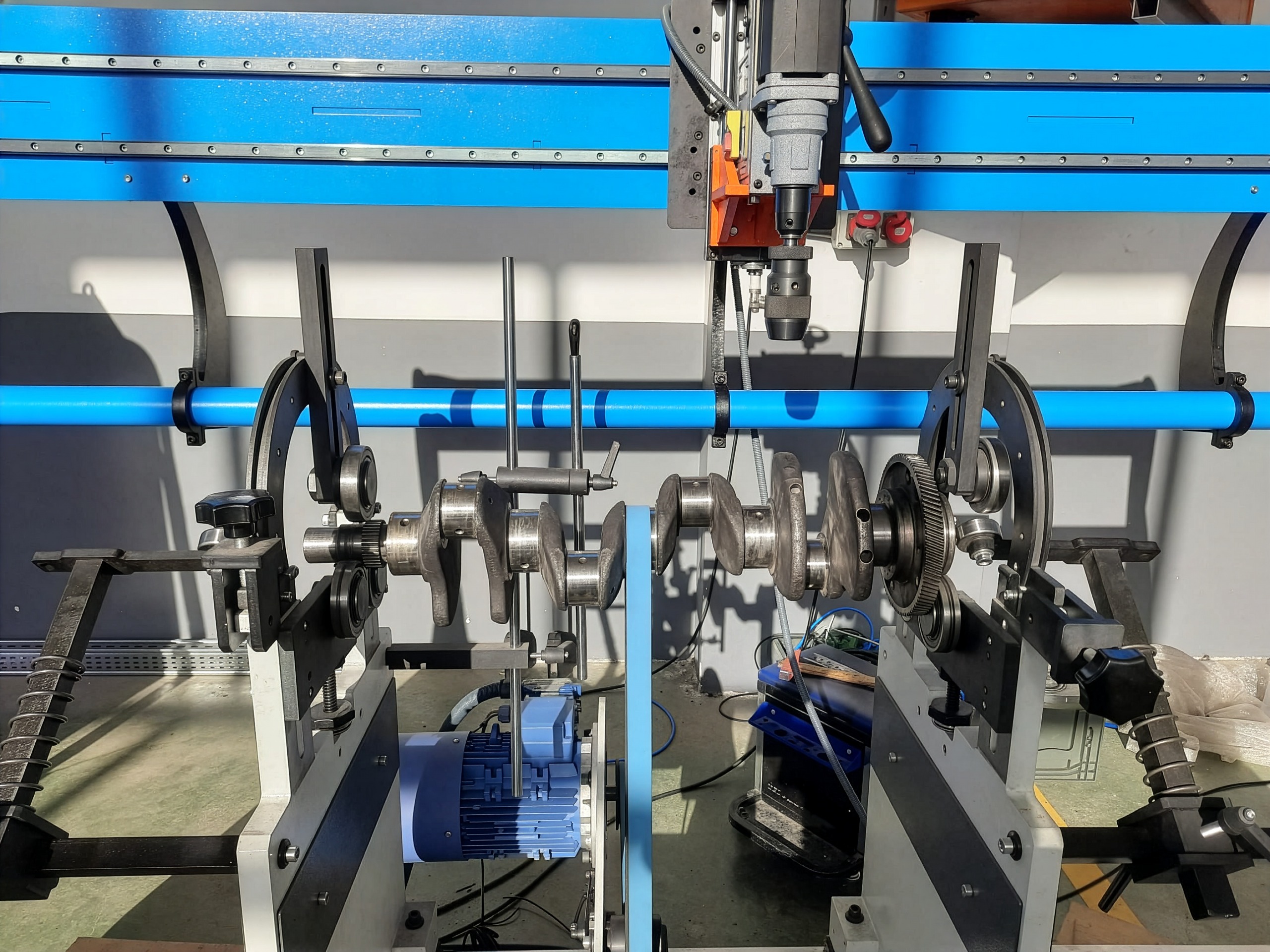

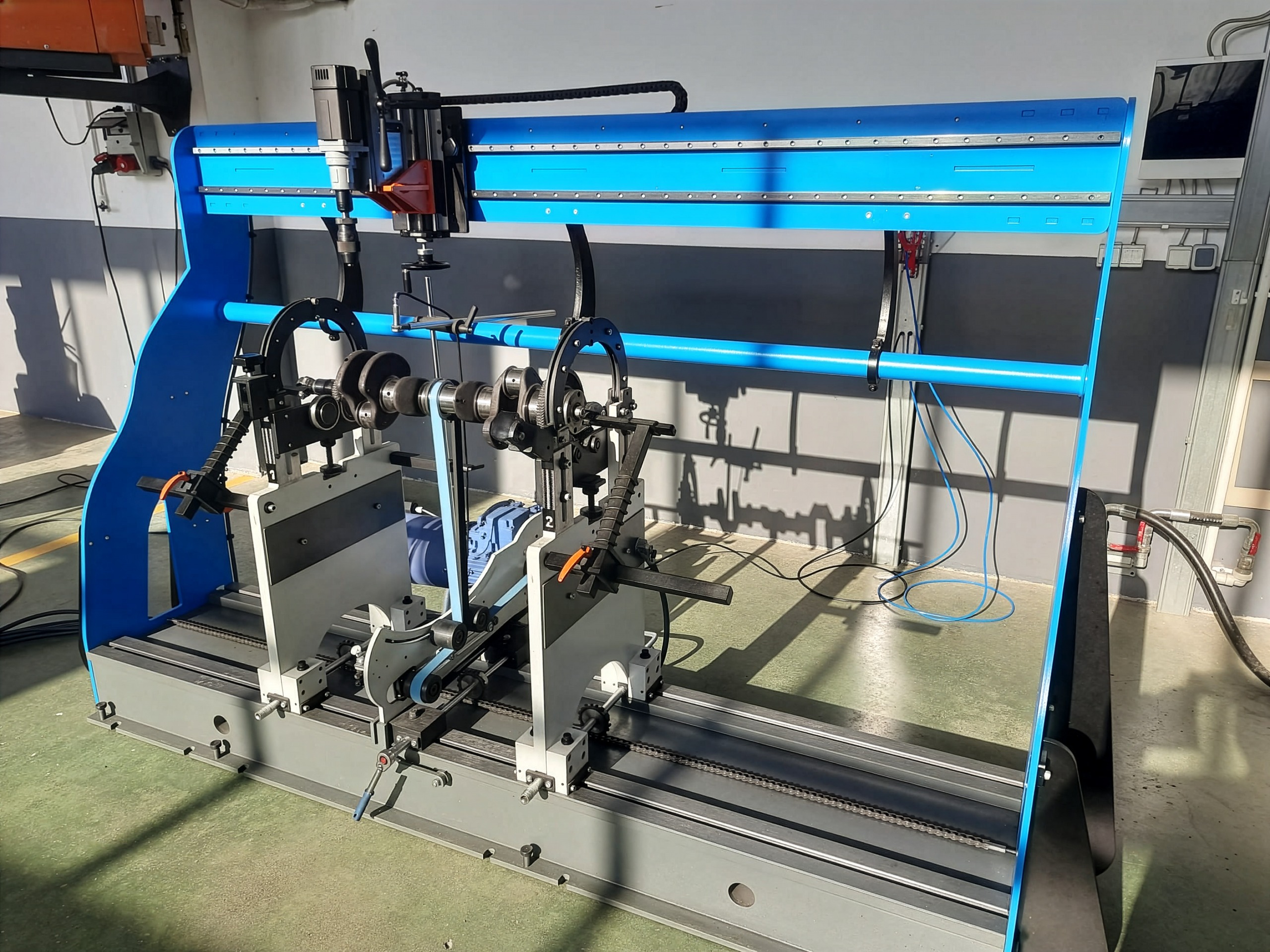

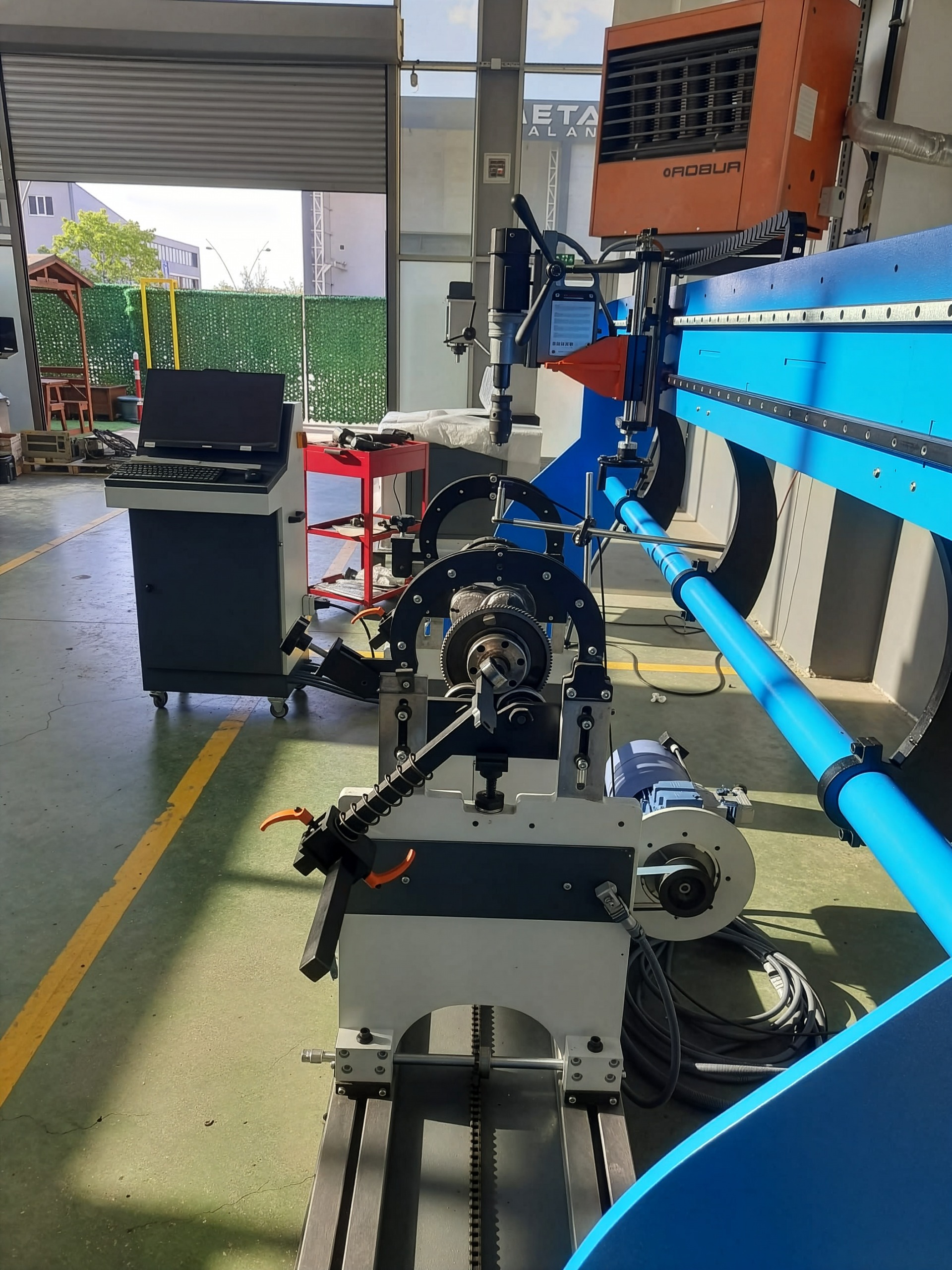

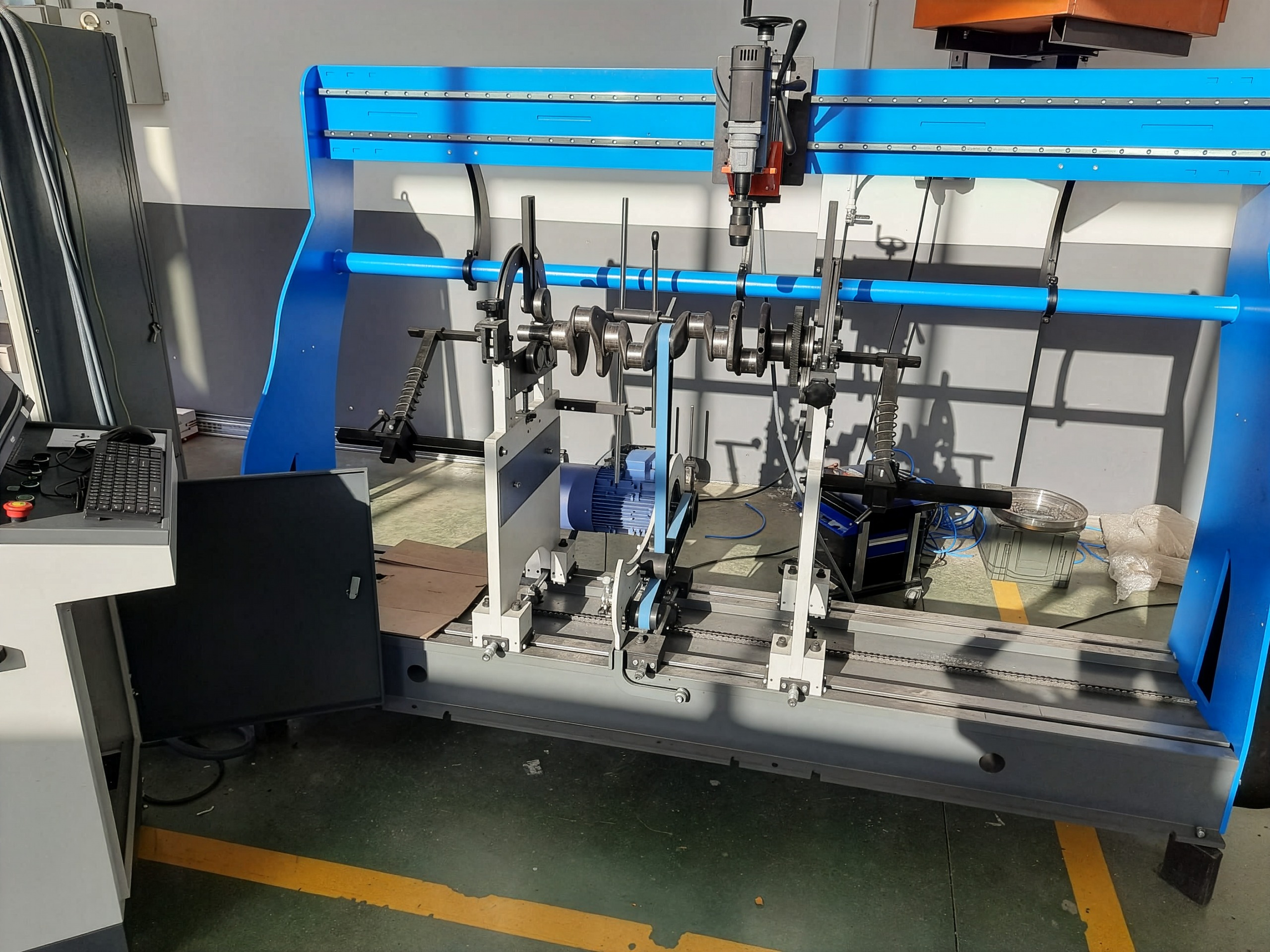

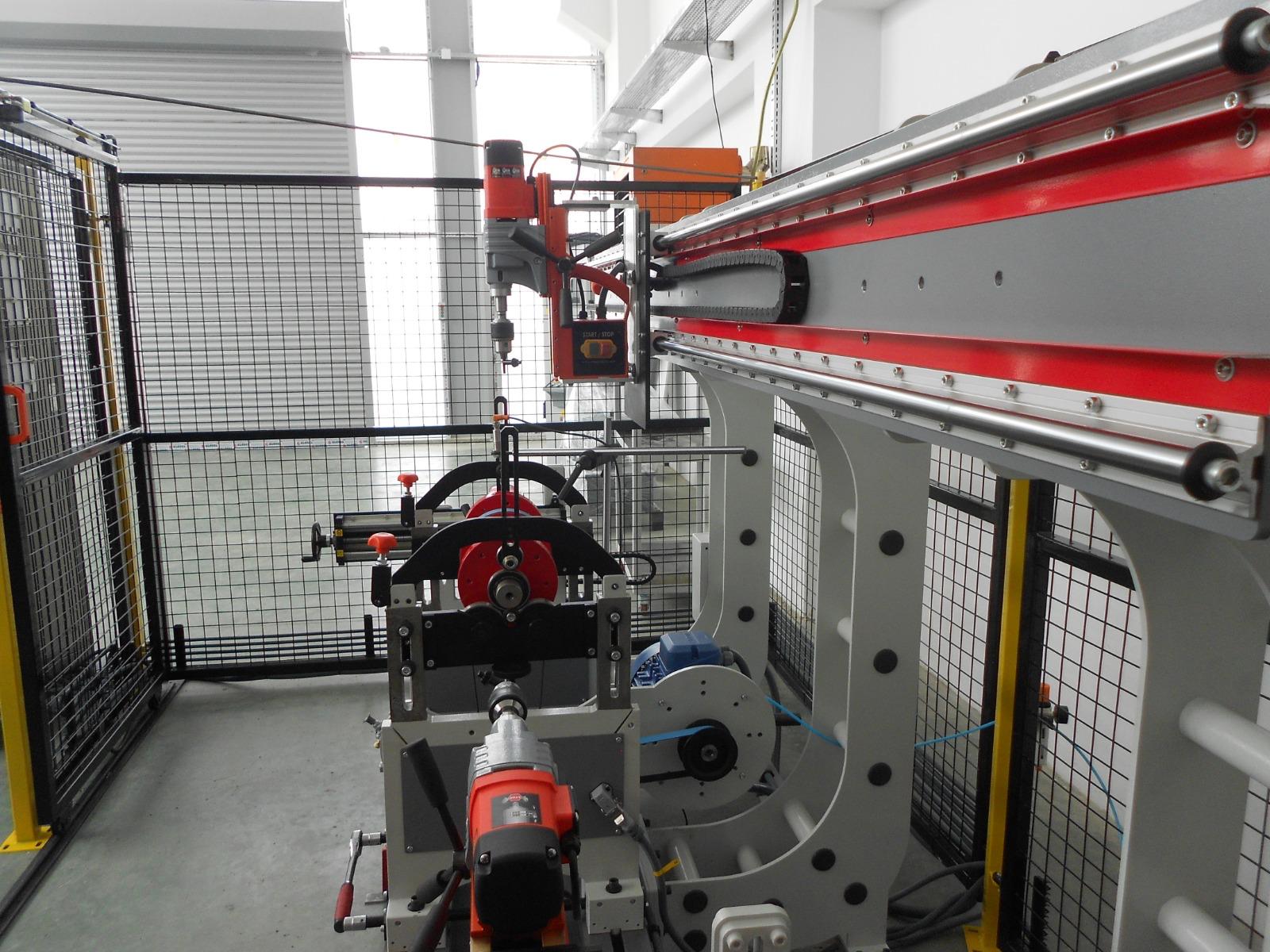

Optional Balancing Machine H-IRB-500+
Product Description
Reliable and Precise Balancing Solutions for Heavy Parts and Large Rotors
The H-IRB-500+ Horizontal Balancing Machine is an excellent balancing solution for heavy workpieces ranging from 15 kg to 500 kg. While supporting rotor diameters up to 1100 mm, its powerful 5.5 kW motor ensures reliable performance even in the most demanding industrial applications.
With its standard belt drive unit and 2500 mm bed length, the H-IRB-500+ offers precise balancing in compliance with ISO standards. Its robust structure and advanced software provide a long-lasting, efficient solution.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Rotor Weight | 500 kg |
| Minimum Rotor Weight | 15 kg |
| Maximum Rotor Diameter | 1100 mm |
| Minimum Shaft Diameter | 10 mm |
| Maximum Shaft Diameter | 240 mm |
| Motor Power | 5.5 kW |
| Bed Length | 2500 mm |
| Drive Unit | Standard Belt |
Application Areas
- Industrial drums and shafts
- Large rotors
- Industrial parts requiring heavy loads
- Applications that require precise balancing
